High Conveying Capacity Industrial Stainless Steel Automatic Portable Z Type Elevator Conveyor with Dimple or Plain Hopper Of 1.0L 1.8L 3.6L Surface Price

Product Description

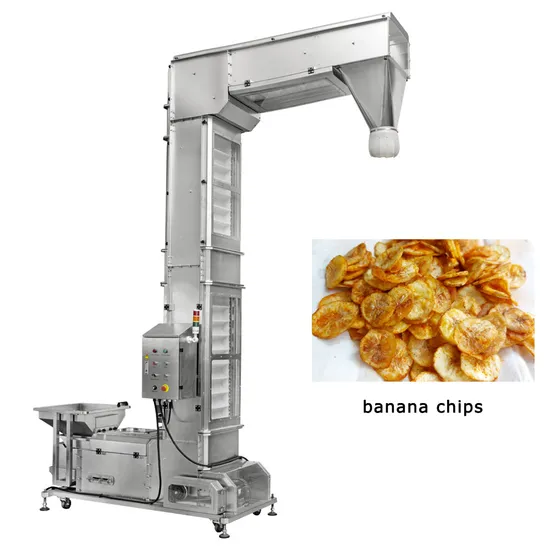

High Conveying Capacity Industrial Stainless Steel Automatic Portable Z Type Elevator Conveyor with Dimple or Plain Hopper Of 1.0L 1.8L 3.6L Surface Price Product show
Z Elevator Parts
Hoppers:
As a container for loading and transporting materials, it is made of stainless steel, strong and durable without corrosion. Each machine has dozens of these small hoppers. When the hopper reaches the outlet, the hopper is tilted to allow the material to fall, and when the hopper reaches the inlet, it returns to a horizontal state and proceeds to the next wave of transport.
Chain Belt:
The hopper is attached to chain belt for transferring the hopper from the inlet to the outlet. The entire chain belt is circular and end-to-end.
Metal Body:
The Z Elevator is divided into three parts: the infeed length path, the transport height part and the outfeed length part. The length of each section can be customised to meet the requirements of different situations.
Electrical Control Box:
Adopt well-know brand, each function is clear at a glance. A variety of questions alarm function, the operation is more humane. With the motor overload protection function.
Moter/Reducer:
It is like the heart of the. Z elevator, providing energy source for the chain belt, using the famous factory motor and reducer, with high power and stable performance.

Contents	Specifications
Body Material	carbon steel / SUS304
Hopper Volume	1.0L / 1.8L / 4.0L
Hopper Surface	dimple / plain
Power Supply	single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW
Conveying Capacity	2.5m³/h / 4m³/h / 8m³/h
Machine Dimension(mm)	per customer's requirement
Vibrating Feeder	detached / independent vibrating feeder
Feeder Volume	70L / 100L / 150L / 200L
Discharge Funnel	single / double / multiple

1. Compact structure, small occupation.
2. Single or multiple feeding ports & discharging ports.
3. Gentle conveying with low noise, material undamaged.
4. Adjustable conveying speed and easy maintenance, disassembly and cleaning.
Kinds of Systems
Company Profile FAQ • Wide Range of ProductWorking in packaging, conveying, multi-weight sorting and detecting machines.• Product PatentsAlmost all of our products have gained CE certificate,ISO9001 certificate,IP65 and IP67 Waterpoorf and Dustproof certificate.• Professional R&D TeamThe number of skilled engineers take up 63% of total employees.• 10+ Years of Customized System IntegrationProviding all kinds of customized intelligent weighing and packaging solutions.• Complete Technical SupportAll of products is at least 12 month warranty and any enquiry will be responded within 24 hours.• After-Sale ServiceToptic Tech has setup its after-sale service in California, USA and Sichuan and Shanghai, China.
We solemnly promise: equipment and material contact parts are 304 stainless steel material
or food grade plastic, in line with the health requirements.We warmly welcome and sincerely invite you to visit our factory. We will pick you up at airport, and the best accommodation will be provided for you. ---------------------------------------------------------------------------------------------------
