China 1 Ton Home Small Trackhoe Digger Machine for Construction Projects

Product Description

Product Description

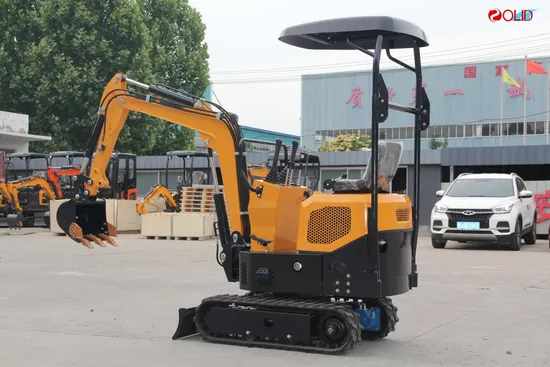

Introductions Of CT80 Road Crushing Mini Excavator Prices 800kg 0.8 Ton Excavators Small Digger With CE Small excavators are widely used in greenhouse orchards, mountain ditches, rural renovation, indoor and outdoor, construction projects, road finishing and other working conditions.
1. Preheating of the hydraulic device. When the temperature of the hydraulic oil is low, rapid operation will cause damage to the hydraulic device.
1.1. The small excavator engine runs at a medium speed, operates the bucket, and preheats;
1.2. Jack up the machine to rotate the crawler, and preheat the left and right travel motors respectively;
1.3. Then, raise the speed of the engine to the highest, and make the bucket and stick work continuously for 5 minutes;
At the same time, the safety of the surrounding environment should be fully paid attention to during the warm-up operation. When the temperature is low, the reaction of people will be relatively slow, so it is necessary to prevent people and objects around them during warm-up.
Second, the preheating of the small excavator engine, the first step in getting on the car, the engine should be started and run at low speed for 5 minutes. At the same time, the following inspections should be carried out during the warm-up process of the small excavator engine:
2.11. Whether the oil warning light is off;
2.2. Whether there is oil leakage or water leakage;
2.3. Whether the sound of the engine and the color of the exhaust are normal;
2.4. Whether the charging indicator light is off;
2.5. Whether each part of the machine is abnormal.

Product Parameters
Specification of mino excavator /mini digger/digging machines /small excavator

Performance Parameters	Overall Weight: 0.85T	Bucket Capacity: 0.022m3
	Rated Power: 7.0/3000kW/rpm	Travel Speed (High/Low): 1.9km/h
	Rotation Speed: 13rpm	Climbing Ability: 58%/30°
	Ground Pressure: 26kPa	Bucket Excavation Force: 7.2kN
	Boom Excavation Force: 4.6kN
Machine Dimensions	Total Length (during transport): 2876mm	Total Width: 840/880mm
	Total Height (top of the boom): 1110mm	Total Height (top of the cabin): 2225mm
	Track Width: 180mm	Track Gauge: 660mm
	Minimum Ground Clearance: 132mm	Rear Swing Radius: 800mm
	Track Ground Length: 900mm	Track Length: 1233mm
Operating Range	Maximum Digging Height: 2550mm	Maximum Unloading Height: 1687mm
	Maximum Digging Depth: 1787mm	Maximum Digging Reach: 3077mm
	Minimum Swing Radius: 1483mm

Attached Tools
Attached Tools for Mini Excavator
Breaking Hammer
When you need to break up the asphalt or concrete pavement, or some other hard surfaces, the excavator breaking hammer could help to finish the work with the great impact of energy.
Drilling Auger
Powered by hydraulic circuits, and equipped with a spiral blade, the drilling auger has the ability to reach over objects and drill deep holes. Augers come in different specifications and sizes for various digging conditions and terrains such as landscaping and construction for the consistent holes.
Buckets
Buckets are the most standard attachments seen on excavators. Besides the common size installed on excavators, there has also some other options for a different purposes. The width could be200mm,250mm,450mm,500mm,600mm,1000mm, etc. with or without bucket teeth.Besides, the tilt bucket is also available for special works.
Quick Hitch
A quick hitch is also called a quick coupler, driven by mechanical or hydraulic power. Couplers allow you to quickly switch between tools and attachments without a crew when you need multi-tools on the excavator. They can help maximize the versatility of your excavator and boost your team's productivity
Ripper
Rippers are another excellent attachment for tearing through tough materials. These durable tools can break up frozen ground or demolish structures.
Rated Excavator
Packaging & Shipping

When the mini excavator comes to packaging, we have to at first
consider the ordering quantity. If only 1 or 2 sets, we usually put the digger excavator in the wooden box and fix it inside. lf the quantity is big, we could load them into the container and fix them. Our experienced packing team could do it quite well.
1,lf the quantity is 1 or 2 sets, we do the packing by fumigation wooden box
2,One 20GP could fit 4 sets of HX20 model,one40HC could fit 30 sets of HX10 model
3,The quantity of each model could be fitted in the container, please inquire us
4,The professional packing team will make everything within the exporting standard

Working Case
Features
MINI EXCAVATOR Features:
SOLID Heavy Industries has recently developed a mini excavator known as the "Indoor Elf," designed to be compact, flexible, and easily mobile. This innovative machine saves time and effort and is suitable for indoor, orchard, agricultural, municipal, industrial, and various other applications.
Key Features:
1. Equipped with an engine that complies with Euro V emission standards, providing robust power, stable performance, and smooth, low-vibration operation.
2. Utilizes hydraulic components exclusively provided by Cater Heavy Industries for stable operation and high reliability.
3. User-friendly design for control and switch mechanisms, making operation easy and enhancing working comfort.
4. Maintenance is made convenient with a rear-hinged overall machine cover, facilitating servicing and inspections.

Company Profile
SOLID was founded in 2008 year. Since then, SOLID has stood at the forefront of the Chinese construction machinery industry and developed into one of the domestic industry's largest, most influential, and most competitive enterprise groups with the most complete product varieties and series.SOLID is ranked 65th in the list of China's Top 500 Companies, 44th in the list of China's Top 100 Manufacturing Enterprises, and 2ND in the list of China's Top 100 Machinery Manufacturers. SOLID is dedicated to its core value of "Taking Great Responsibilities, Acting With Great Morals, and Making Great Achievements" and its corporate spirit of being "Rigorous, Practical, Progressive, and Creative" in order to keep moving towards its ultimate goal of becoming a leading world-class enterprise capable of creating real value.SOLID mainly supply Hoisting machinery, MiningMachinery Machinery, , Excavators, Loaders, Road Machinery, Piling Machinery, Non-Excavation Machinery, Concrete Machinery, Special Vehicle, Aerial Working Equipment, Sanitation Machinery, Fire-fighting Machinery, Tunnel Machinery, Resource Exploration Machinery, Port Machinery and so onSOLID products, including mechanical vibratory road rolls, mini excavators .mini digger ,and motor graders, have successfully participated in the construction of the largest railway project in the Philippines, thanks to their outstanding performance and comprehensive after-sales service. These three types of machines have contributed to the project's progress in an organized manner. During our on-site visits to customers, they expressed that SOLID products are reliable in quality, and the compact excavator equipped with a hydraulic breaker delivers excellent impact force. This effectively ensures the project's advancement and contributes to its completion within the expected timeframe, providing additional momentum to the development of local livelihood projects.

---
