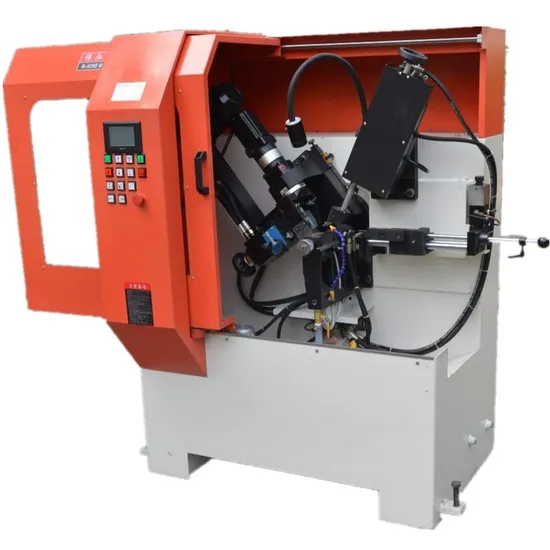

| Model | MF158A |
| Saw blade outside diameter | 80-800mm |
| Saw blade inside diameter | Customized to 10-220mm |
| Saw blade thickness (body) | 1-12mm |
| Pitch | 7-150mm |
| Teeth face grinding angle | -3 degrees to +30 degrees |
| Teeth end grinding angle | 6-40 degrees |
| Teeth left right angle | Teeth end/teeth face 45 degrees |
| Grinding stroke | 0mm-25mm |
| Grinding speed | 0.5-6mm / s |
| Working speed | Max. 20 teeth / min |
| Negative chamfer grinding | -27 degrees |
| Grinding head rotate angle | 90 degrees and 180 degrees |
| Grinding Wheel size (OD x hole) | 125mm*32mm |
| Grinding wheel speed | 26m / s |
| Cooling pump flow | 50L/min |
| Cooling liquid tank | 80L |
| Total power | 1.85 kW |
| Voltage | 380V 50hz 3phase |
| Machine size | 1500*1300*1900mm |
| Mechanical weight | 900KG |
