High Torque Permanent Magnet Electric 24V 3000rpm 50W Small Volume Servo BLDC Brushless DC Gear Motor with Gearbox for Industrial Fan

Product Description

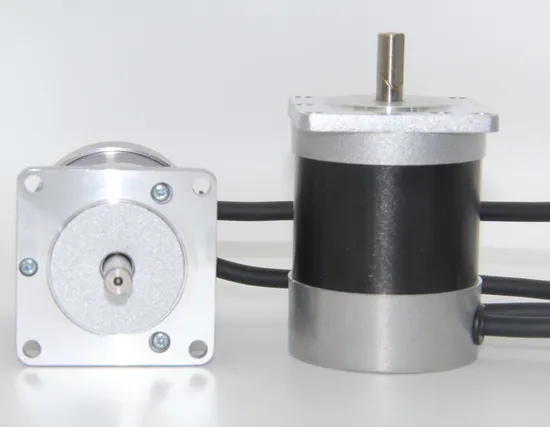

57BLY DC Brushless Motor Introducing the High Torque Permanent Magnet Electric 24V 3000RPM 50W Small Volume Servo BLDC Brushless DC Gear Motor with Gearbox for Industrial Fan. This universal motor operates at a constant speed and is excited by a brushless DC motor. Perfect for industrial, household appliances, cars, and power tools.Product Description

Projects	Specifications
Winding Type	Star
Hall Effect Angle	120° electrical angle
Shaft Axial Play	0.025mm
Ambient Temperature	-20~ + 50°C
Ambient Humidity	<80%
Max. Radial Force	75N@20mm from the flange
Max. Axial Force	20N
Insulation Class	Class B
Dielectric Strength	one minute@500VAC
Insulation Resistance	100MΩMin.@500VDC

Product Parameters

Model	Rated Voltage	Rated Torque	Rated Speed	Rated Current	Rated Power	Peak Torque	Torque Constant	Body Length	Weight
	VDC	N.M	RPM	A	W	N.M	N.M/A	MM	KG
57BLY55-230	24	0.16	3000	2.8	50	0.48	0.057	55	0.46
57BLY55-460	48	0.16	6000	2.8	100	0.48	0.057	55	0.46
57BLY75-230	24	0.32	3000	5.6	100	0.96	0.057	75	0.75
57BLY75-460	48	0.32	6000	5.6	200	0.96	0.057	75	0.75
57BLY95-230	24	0.48	3000	8.4	150	1.44	0.057	95	1
57BLY95-460	48	0.48	6000	8.4	300	1.44	0.057	95	1
57BLY115-230	24	0.64	3000	11.2	200	1.92	0.057	115	1.2
57BLY115-460	48	0.64	6000	11.2	400	1.92	0.057	115	1.2

Note:Brake, reducer, encoder, handwheel and other devices can be installed.
Please feel free to contact us for more details.Detailed Photos

Application Area
Product Recommendation

Stepper motor

Brushless motor

Synchronous motor

Company Profile
Changzhou Sino-pan Electric Co., Ltd. is an export-oriented enterprise. Located in Xinbei District, Changzhou City, Jiangsu Province, China. After years of operation, the scale of our enterprise has continued to expand. Gradually grow into a group company. At present, our company mainly produces automotive bulbs (such as halogen bulbs and automotive LED bulbs/as well as household LEDs and commercial LEDs), motors (brushless motors/stepping motors/synchronous motors/asynchronous motors). At the same time, we are also appointed by many clients as purchasing and quality inspection agents in China.We provide you with high-quality, fast, efficient and inexpensive automotive lighting, motors and auxiliary electrical services. Zhongpan welcomes your patronage with a smile, and we will provide you with a variety of satisfactory products and a full range of consulting services. We firmly believe that the cooperation with us will be infinitely better! Strive to create a stronger tomorrow for our customers!
Packaging & Shipping
FAQ
Q1. Can I provide sample orders for your products?A: Of course, you can check our quality before ordering. If you have any requirements, please contact us.Q2. What is your delivery time?A: It depends on the order quantity. Usually, it takes about 3-7 days after receiving the small deposit. Bulk ordering takes 10-20 days.Q3. What kind of customers and what kind of companies do you work with?A: We have 20 years of export experience and serve more than 100 customers, such as retailers, wholesalers, and online store owners.Q4. Is it possible to put our logo on your product or product packaging?A: Of course, we have a factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc. Q5: Can you OEM for me?A: We accept all OEM orders, just contact us and give me your design. We will provide you with a reasonable price and make samples for you as soon as possible. Q6: What are your payment terms?A: According to T/T, LC AT SIGHT, 30% deposit in advance, and the balance 70% before shipment.

---
