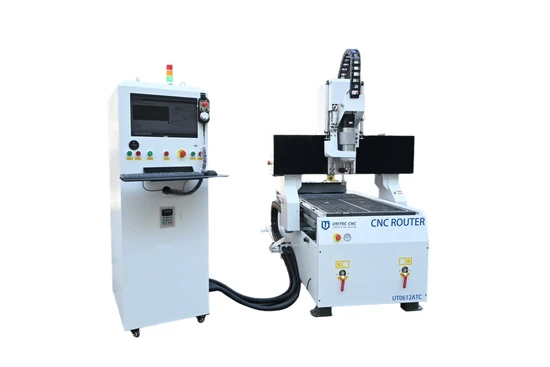

0612 3D Woodworking Cutting Carving Engraving Milling Machines Price 4 Axis 5 Axis Automatic Atc CNC Router Machine for Wood MDF Furniture

Product Description

Detailed Photos

MAIN PARTS
Taiwan CSK Linear Guide	5.5KW metal working spindle
Heavy Duty Frame	7.5KW Vacuum pump
Delta Servo Motor and Driver	Ball Screw
Linear ATC with auto calibrator	Ncstudio Controller

Product Parameters

XYZ Travel Size	600X1200X220mm
Max Working Size	600X1200X220mm
Table Size	650 X 1250mm
Transmission Type	XYZ ball screw
Guide Rail	Taiwan Linear Guide
Table Type	T slot
Spindle Power	5.5KW China ATC spindle
Tool Changer	Linear Tool Changer
Spindle Speed	24000rpm
Max Travel Speed	40000mm/min
Max Work Speed	20000mm/min
Motor	AC servo motor
Work Voltage	AC380V 50HZ
Controller System	Ncstudio or Syntec
Processing Accuracy	±0.05mm
Repeat Positioning Accuracy	±0.01mm
File Format	G code or PLT
Overall Weight	600KG
Overall Dimension	1000X1500X1800mm

Product Description
Applications and Materials
Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS panel
Highlights
1.Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
2.Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3.Various of table styles makes convenient clamping materials and improves overall production efficiency
4.Equipped with automatically materials locating system, improve the efficiency of materials clamping and solve the accuracy problem of processing obverse and reverse side of the material
5.Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing.
6.Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
7.accessories which will ensure the overall running performance
8.Strict compliance with CE electrical standards for circuit design and production, and all
Parts have safe and reliable protection device. Certifications
Packaging & Shipping
Exhibition
Company Profile
Company Profile
Nanjing Unitec Technology CO., LTD is a dynamic and innovative manufacturer at the forefront of CNC Technology, which is located in Nanjing, Jiangsu Province, China.
Established in 2008, with a vision to provide cutting solutions and services, Unitec has been making significant strides in the markets of signmaking, metal working, woodworking, automative interior, package, etc . The company provides a wide range of products, such as CNC Router machine, CO2 Laser Cutting Machine, Fiber Laser Cutting machine and Digital Cutting Machine. And Unitec is staffed by a team of highly talented and dedicated professionals who are passionate about technology and committed to excellence.
Our company is proud to have a highly skilled talent team. The members of this team are all experts in their respective fields, with rich professional knowledge and practical experience. They are dedicated to innovation and continuous improvement, constantly striving to develop new technologies and products to meet the diverse needs of customers. With their outstanding technical capabilities and creative thinking, our company is able to maintain a competitive edge in the market and provide high-quality products and services.
With the rapid development of the company, Unitec established good relationships with famous suppliers, such as: Italy HSD spindle, Italy Colombo spindle, Japan Yaskawa servo motors, Taiwan Delta servo motors, Taiwan Syntec Controller, Taiwan HIWIN Linear guides, TBI Ball screw,etc .They work with Unitec teams tightly and guarantee the quality of our machines.
The company also provides comprehensive technical support and consulting services. Whether it's troubleshooting issues, providing training, or offering strategic advice on technology implementation, Unitec's experts are always ready to assist.
Under the guarantee of excellent quality, timely and efficient service, Unitec established a wide and systematic sales network worldwide. Our company's products are exported to more than 100 countries and regions around the world, such as Japan, South Korea, the United Kingdom, Sweden, the United States, Norway, Finland, Germany, and so on.
Unitec is committed to innovation and continuous improvement. The company invests heavily in research and development to stay ahead of the curve and bring the latest technologies to its customers. With a focus on quality and customer satisfaction, Unitec ensures that every product and service it offers is of the highest caliber.
With its strong reputation, innovative products, and excellent customer service, Nanjing Unitec Technology CO., LTD is poised to continue its growth and success in the years to come.

---
