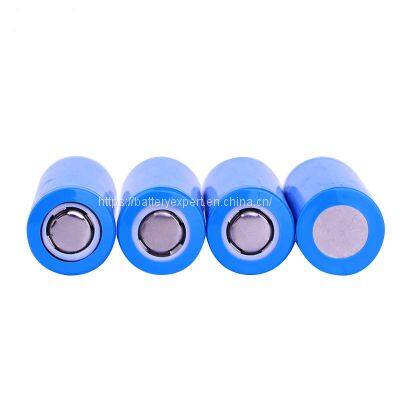

3.2v 1000mAh 18500 LiFePO4 battery:
| No. | Item | Specification | Remarks |
| 1 | Brand Name | OEM |
|
| 2 | Model NO. | IFR18500 |
|
| 3 | Normilar Capacity | 1000mAh | 0.2 C5A discharge |
| 4 | Normilar Voltage | 3.2 V |
|
| 5 | Discharge Voltage (Min.) | 2.0V |
|
| 6 | Charging Voltage (Max.) | 3.65V |
|
| 7 | Charging Current (std.) | 0.5 C5A |
|
| 8 | Discharging Current (Max. continue) | 1 C5A |
|
| 9 | Discharging Current (Max. temporary) | 2 C5A |
|
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH |
|
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH |
|
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH |
|
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH |
|
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH |
|
| 13 | Battery Type | LiFePO4 battery 18500 1000mAh |
|
| 14 | Internal Impedance | ≤50 mΩ |
|
| 15 | Protection Fuctions | Over charge, Over discharge,
Over load, Short Circuit |
|
| 16 | Size | 18*18*50mm | Recommend or Customize |
| 17 | Weight | Approx. 31g | PVC/ABS package |
| 18 | Cycle Life | 5000 times |
|
| 19 | Warranty | 12 months |
|
Applications:Toys, Power Tools, Home Appliances, Consumer Electronics,solar system, telecom, robotic, ups,etc.
Features:
* Safest lithium chemistry* High energy density, 120-130kWh/kg * Efficient & long-lasting up to 5000+ cycles * Good high temperature performance * Good high rate discharging performance * Excellent stability
Ready for Battery Pack Assembly:
* Cell models variety available * Multiple cells assembled with protection circuit board (PCB), wire & connector available * Battery modules or units available for variety applications * Play replacement for lead acid battery with ABS case
Typical Advantage of our lithium Iron phosphate battery PACK:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging, no memory effect.
3. Longer cycle life more than 2000 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.
>>
