Basic Info.
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Certification
CE, ISO9001, CCC
System Type
Low Pressure Solar Geyser
Installation
Rooftop Mounting
Inner Tank Material
SUS304 2b Stainless Steel 0.41mm
Outer Tank Material
Painted Galvanized Steel 0.31mm
Insulation Layer
Polyurethane Foam 55mm
Solar Collector
Solar Vacuum Tube
Tube Coating Structure
Three Target Coating
Tube Material
High Borosilicate Glass 3.3, 1.6mm Thick
Stand Frame
Galvanized Steel 1.5mm
Accessory
Feeder Tank, Electric Heater, Controller
Trademark
RAVEN NEW ENERGY
Production Capacity
2000PCS/ Month
Product Description

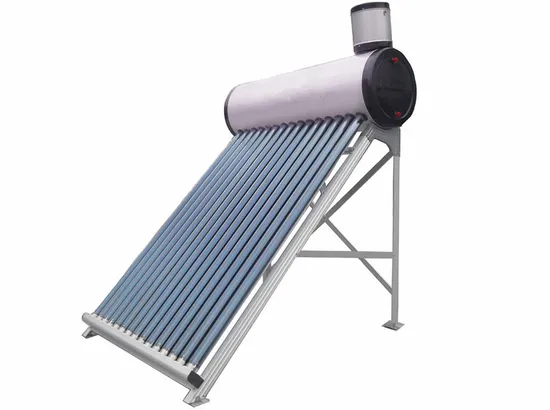

Compact Low Pressure Solar Geyser Thermosyphon low pressure solar geyser, solar water heater adopts simple thermal circulation, cold water heated by solar vacuum tubes, then hot water go up to tank, cold water in tank flow into solar vacuum tubes, cold and hot water form a natural circulation called thermosyphon, the whole tank water will become hot gradually.
Specialty: 1.Economical type for most of area,common people can afford it 2.Simple product structure: solar collector and water tank connected together directly, no need of pipe to connect, and no pump to push fluid 3.Mature technology and stable operation 4.Higher efficiency on photo thermal conversion. 5.Accessory is popular and easy maintenance Technical specification:
1. Inner Tank: 0.41mm SUS304-2B food grade stainless steel (optional material: SUS316L). 2. Outer Tank: 0.41mm SUS304-2B food grade stainless steel (SUS304-2B). 3. Bracket: Galvanized steel , thickness 1.5mm , angle 20°/30°/45°. 4. Insulation: 55mm polyurethane layer. 5. Vacuum tube material: borosilicate glass 3.3; AL-SS-CU absorb coating 6. Seal material: Stabilized High Temperature Silicon 7. It resists 25mm hail. 8. Heat preservation: 72 hours
Production flow:
Packing details:
solar water tank 1 carton, stand frame 1 carton, solar vaccum tubes , 10pcs / carton .
For sample order, MOQ less than 2pcs , packed by wooden box .
Customer installations :
For any inquiry, please feel free to contact us !
>>
