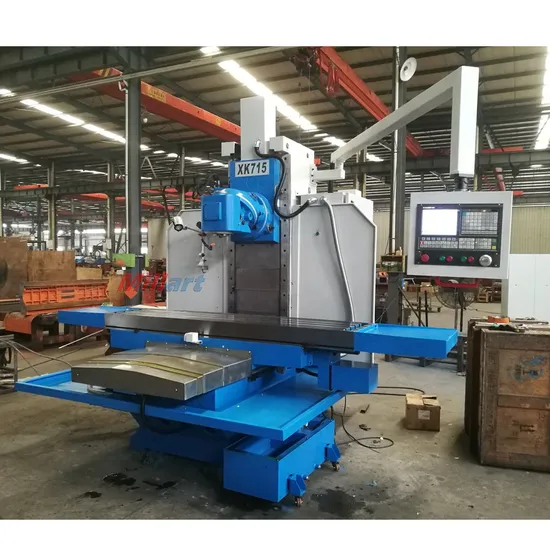

Bed Type Milling Machine X715, CNC Bed Type Milling Machine Xk715, CNC Milling Machine

Product Description

Product Description
1,All guides are hardened, ground, and supplied with oil by a central lubrication unit
2,Universal swivel head swings easily to a horizontal position
3,Servo-motors on all axes, infinitely variable feed, rapid feed, and speed control
4,Electronic hand-wheels on all axes
5,Ball screw drive on all axes
6,powerful main motor

Product Parameters
Specification:

Specification	Unit	X715	XK715
Spindle hole taper		7:24 ISO50	7:24 ISO50
Spindle speed range	r/min	2steps 6-300, 300-1500	Variable 6-300,30-1500
Distance between spindle axis and column guideway	mm	610	610
Distance between spindle nose and table surface (V)	mm	20~650	20-650
Table size	mm	2100×500	2100*500
T slots	mm	4/20/100	4/20/100
Table travel-X	mm	1500	1500
Table travel-Y	mm	650	650
Table travel-Z	mm	600	600
Table feed-X/Y	mm/min	2.5~3000	2.5-3000
Table feed-Z	mm/min	2.5~2500	2.5-2500
Table rapid feed X/Y/Z	mm/min	6000/6000/3000	6000/6000/3000
Main motor power(CTB)	kw	11kw or 15kw(servo motor)	11kw or 15kw(servo motor)
Cooling pump motor power	w	90	90
Torque of X/Y/Z axis AC servo motor	Nm	18/23/18	22/22/22
Overall size	mm	3220×2420×2800	3220*2420*2800
Net weight	Kg	7300	7300

Standard accessories: X715:
1.The includes a horizontal cutter arbor holder with excellent rigidity.(The CNC machine does not have this horizontal milling bracket)
2.Automatic oil lubrication.
3.CE Electric.
4.Electronic hand-wheel.
5.Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds.
6.SINO DRO
XK715:
1,CNC Bed-type Milling Machine With Siemens808D 15X Advance CNC Controller
2,without The includes a horizontal cutter arbor holder with excellent rigidity.(The CNC machine does not have this horizontal milling bracket)
3,Automatic oil lubrication.
4,CE Electric.
5,MPG hand-wheel.
6,Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds.
Optional accessories:

Pneumatic tool clamping (Can only be used in end milling state)

Table cover

Machine Vice QM200mm

Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
