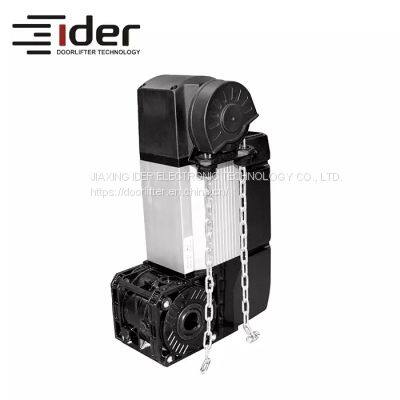

GYM50-1 70-1 60S-1 100S-1 150S-1 Industrial Gate Operator with Mechanical limit switch

Product Details

Product Details

Product Description

Product Description
Ider Specialized is engaged in the industrial door operator research and development, manufacturing and sales, the company has 20 years experience in design and manufacture of electric door machine industry technical team and management team.Companycooperate withGerman companies, in strict accordance with the European standards for production, quality validation from users all over the world.
Table of Performance Parameters for the Door-openers for Industrial Purposes:
Model
GYM50-1
GYM70-1
GYM60S-1
GYM100S-1
GYM150S-1
Input Voltage
AC220V
AC220V
AC380V
AC380V
AC380V
Rated Power
300W
500W
300W
450W
650W
Startup Torque
35N.m
60N.m
60N.m
100N.m
150N.m
No-load Running Time
15min
15min
25min
25min
25min
Maximum Door Weight
15m2
25m2
25m2
35m2
40m2
Supportive Power-contral
GYK-91S
Diameters of the hole for output shaft
Φ25.4mm
Retarding Mechanism
Mechanism completely built with cooper worm wheels and worm rods
No-load Rotating Speed
24r/min
Lubrication
Oil submerging
Thermal Protective Temperature
120ºC
Max. Limited Journey
20 rounds rotation of the output shaft
Ambient Temperature
-20ºC~+45ºC
Working System
S2 20%
Noise
≤55dB
Protective level
IP 54
Mode of supportive power-control
Split type
