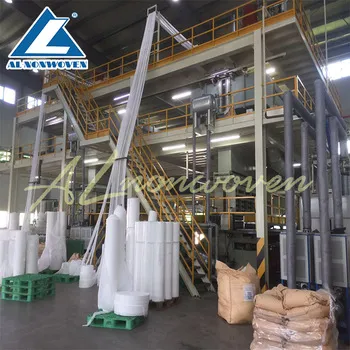

Fully Automatic High Quality PP Spunbond Non Woven Fabric Machine Bag, Bady Diapers, Sanitary Fabric Making Equipment

Product Description

Product Description
Fully Automatic High Quality PP Spunbond Non Woven Fabric Machine Bag ,Bady Diapers,Sanitary Fabric Making Equipment
1.1 :Raw material: Polypropylene chips (Melt index: 30-40g/10min, with variation not more than 1% for each batch; Melt point: 168; Ash content: ≤0.15-0.25%
1.2 :Width of finished fabric: 1200mm
1.3 :Single filament titer: 1.5-2.5 denier
1.4: Annual output: 1100 tons/year (say 7,200hours per year, over 20gsm)
1.5 :Web weight: 10-250 g/m2
1.6: GSM Variation: CV value less than 5%
1.7: Extruder size: φ105 L/D=30:1
1.8: Process speed: 10~150m/min
1.9: Installed power: about 462kw
2.0 :Factory Effective Size: 28000mm*16000mm*7500mm
2.1 :No. of spin beams: 1 set

A:MEDICAL AND HEALTH:Operation suit , operation tablecloth, patient suit, exposure suit, respirator, packing bags,etc.
B:LABOR SAFETY GOODS:Protect clothing, cover for car and motor , dust cover , raincoat, work clothes for spraying the paint ,etc .
C:TRAVELLING GOODS:Beach umbrella , beach suit, recovery bag ,etc.
D:CLEANING GOODS : Baby's diaper, pad for incontinent adults , sanitary towel, filtering material.etc.
E:size:1600mm 2000mm 2400mm 3200mm 4000mm

packing type:
color:free fabrice GSM:15---250GSM
filament :φ1.8--2.0 annual output:5000--25000T/Y

hygienic material:
color:free fabrice GSM:15---250GSM
filament :φ1.6-1.8 annual output:3500--15000T/Y
Material auto-feeder
To feed chips from the ground to the dosing and mixing system on the third floor.
Main material and auxiliary materials can be prepared as per a certain ratio.
Dosing and mixing device, consisting of a main material tank, two auxiliary tanks, a mixing tank, a suction device

Main extruder Extruder is used to melt and extruder PP Chips, master batches and some additives such as antioxidant, anti-pilling agent and flame retardant agent. And, the extruder machine consists of chip inlet, automatic temperature control, cooling device and alarming device.
Main drive employs A.C. frequency control. The temperature control for each zone adopts closed-loop system with WEST temperature meter, solid relay and pt100 platinum resistance.

Filter Filter will material impurities, filtration precision improved.
Type :hydraulic or candle filter
Filtering area:2.5
Filtering precision: 45-60μm
Max Pressure:12MPa
Heat Pressure: heat-transfer oil circular heating
Spinning box Liquid pp raw mater passed spinneret's
Holes become filament;
Diameter of spinneret hole: Φ0.45mm
Heat Pressure: heat-transfer oil circular heating

Installation Instructions
Company Profile
Packaging & Shipping
Nude packing , wooden case is optional.
case packing:Carding machine, lapper and electric boxes wooden case packaged. Other machines nude packaging.
Any damage in transport of machines is not duty of the

Our Service
A.L employees have special sense of responsibility and an excellent team spirit,therefore machinery complies to the highest standard in nonwoven industry creating by with individual outstanding components.
Supported by modern technology A.L designed for custom-built machinery and machinery offers an optimum solution for all customer requirements
A.L supports our customers service 24 hours A day,7 days work ,Any inquiry could be replied within 1 hour pre-sales and after-sales.
We Believe that only :Best Quality Machine With Innovative Ideas and Excellent After-sale Service:"shall meet your special requirements.
