Solar Collector Water Heating System with Heat Pump

Product Description

Specification
I. Manifold
Outer shell: Aluminum alloy 1.6mm
Flow passager: Red copper 35 diameter, 1mm thickness
II. Heat pipe
Header: 0.8mm thickness, 14mm diameter
Body: 0.6mm thickness, 8mm diameter
III. Anti-freeze for heat pipe: -30 degrees
IV. Absorbing fins: Aluminu, thickness: 0.25mm
V. Tube: Three-target styple which has about 10% effeciency more than Single target one. Hail resistant 25mm
VI. Frame: Aluminum 1.8thickness, angle: 45degree(customerized design )
Workstation
1. Workstation works as the brain of the system, it controls the system works well, it is composed by pressure guage,
Flow meter, controller, circulation pump, check valve, expansion jar.
2. Air source Heat pump (family use)

I.Whats the solar collector and how it works?

Solar collector is a collecting machine which absorbs the sun energy to heating ,then supply hot water,space heating and even space cooling via used

of an absorption chiller or dessicant cooler technology.It works under sun,the absorbing tubes convert the solar energy into heat energy and transfer

heat to the heat pipes by aluminum fins,the liquid in the heat pipe turns into vapour and rieses to the condenser and release the energy to water

or other liquid,the the heating liquid back to the bottom of heat pipe and circulation again.

II.Why need solar collector?

Sun energy is free for charge,we can save a lot of money and also sun energy is clear ,we also contribute our power to

the environment protection.Why we not choose it!!!!

Item No.	Tube Data(mm/pcs)		Collecting area(sqm)	Volume proposal(L)	Packing Volume(m3)	Loading QTY.(sets)			Price CIF (usd)
	Size	no.of tubes				20'GP	40'GP	40'HQ
LTY58-18-X	¢58*1800	24	3.15	200L	0.417	60	130	163
		18	2.36	150L	0.313	88	217	268
		48	6.30	400L	0.834	30	65	80
		36	4.72	300L	0.626	88	100	130
		60	7.88	500L	1.008	25	60	70
		12	1.58	100L	0.176	142	313	387
		Packing	24 tubes/set	18 tubes/set	3.5kw heat pump/set	5kw heat pump/set	200L water tank/set	working station/set without expansion vessel
		Net weight	78kg	57kg	47kg	53kg	46kg	5kg
		Gross weight	81kg	60kg	50kg	56kg	49kg	6kg
		Volume	0.327m3	0.287m3	0.15m3	0.22m3	0.55m3	0.02m3

How to install

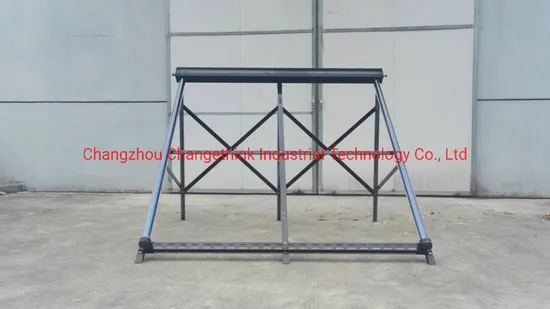

1.Install the frame first ,see the frame install drawing

2.Following the steps

Step1:first install the nylon cap on the bottom track,then screw off the jacket from the cap

Step2:put the heat conduction liquid on the condenser of heat pipe.

Step3:Insert the vacuum tube inside the nylon cap

(be careful:don't touch the vacuum tube on the ground,or it will be broken)

Step4:Hold the vacuum tube tightly,then insert it inside the opposite hole(copper cap)which on

the monifold slowly.

Step5:Screw the jacket on the nylon cap.

3.Specification

I.manifold

Outer shell:Aluminum alloy 1.6mm

Flow passager:Red copper 35 diameter,1mm thickness

II.Heat pipe

Header:0.8mm thickness,14mm diameter

Body:0.6mm thickness,8mm diameter

III.Anti-freeze for heat pipe:-30ºC

IV.Absorbing fins:Aluminu ,thickness:0.25mm

V.Tube:three-target styple which has about 10% effeciency more than Single target one.Hail resistant 25mm

VI.Frame:aluminum 1.8thickness,angle:45degree(customerized design )

IV.Workstation

1.Workstation works as the brain of the system,it controls the system works well ,it is composed by pressure guage,

flow meter,controller,circulation pump,check valve,expansion jar.

2.Specification and price

Item:Integrated pressurized Intelligent Controller

Main technical data:

1,Dimension: 205mmX145mmX48mm

2,Self power consumption: <3W

3,Measuring accuracy of temperature: ±2ºC

4,Temperature range of measurement: 0~120ºC

5,Power of auxiliary electrical booster ≤2000W ( standard

collocation),≤3000W (not standard, selection available)

Main functions:

1,Time display

2,Temperature display

3,Timing heating at three time sections

4,Manual heating

5,Memory protection when power is failure

6,Trouble indication of sensor

Thermostatic mixing valve

Working Principle:

Thermostatic mixing valves in the mixed outlet,equipped with a thermal component. The use of the thermal properties of the original is used to push spool moving in the valve

body, in order to plugging or opening the the water intake. When the temperature adjustment knob set a certain temperature, it always maintain a constant temperature.

This is because that when the water temperature and the pressure changes, The proportion of hot and cold water of the outlet also changed. The thermostat knob can be

provided for the product temperature range of any set, the temperature mixing valve will automatically maintain the water temperature

The main technical parameters

Pressure: 0.03-1MPa

Ideal pressure: 0.05-0 .5 Mpa

The temperature of cold water: 5-29 º C

The temperature of hot water: 50-85 º C

The temperature of maximum water: <98 º C

Temperature range: 30-55 º C

Temperature accuracy: ± 2 º C

Maximum pressure of the cold and hot water: 8:1

Max flow: 2.0 t/h

Price for water tank(LTY304 inner tank)

1.tank with one copper coil:this coil is for the circulation between solar collector and water tank and circulation usally anti-freeze fluid(glycol for exsamle)

2.tank with two copper coils:one for collector and tank circulation,other one for heating equipment or space heating (such as connect to gas/electric boiler ,

and for floor heating system)

III.Specification

1.Inner tank:SUS304-2B 1.2(150L),1.5mm(200L,250L,300L),2mm(400L,500L)

2.Outer tank:Color steel 0.45mm

3.Forming:Polyuranthe 50mm(150L,200L,250L,300L),60mm(400L,500L)

4.connector port:

coils(heat exchanger) :1/2" male,copper coil diameter12mm,1mm thickness

400,500L (coil 16mm,1mm thickness)

5.Accessory:P/T vale,pressure restrict valve,electric heater,magnesium bar

6.Working pressure:0.6Mpa ,testing Pressure:1.2Mpa

---
