21tons Hydraulic Amphibious Excavators with Additional Side Pontoons and Swamp Pump (K210SD)

Product Description

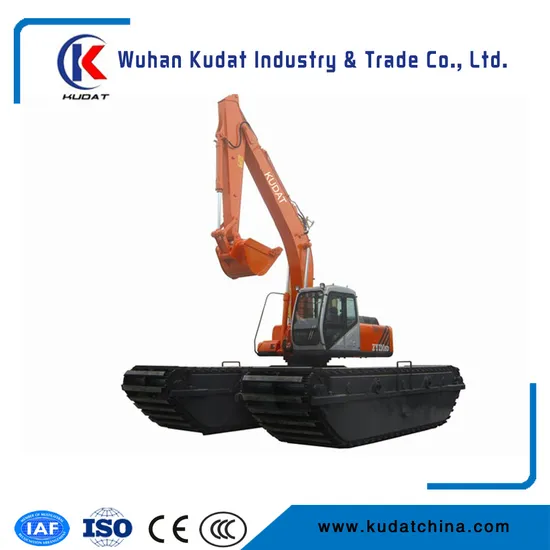

Amphibious Excavators (K210SD)
K210SD Amphibious vessel excavators equipped with Isuzu turbo charged inter cooled diesel engine, Luxury cabin with air conditioner, Original German Rexroth hydraulic pumps and valves.
Operating weight: 26000kg
Rated power: 115kw/2000r. M. P
Bucket capacity: 0.8m³
Max. Digging depth: 5704mm
Max. Digging height: 10577mm
Max. Pumping height: 8430mm
Max. Digging radius: 9925mm
Length of machine: 10000mm
Width of upper carriage: 2470mm
Width of under carriage: 5200mm
Length of track shoe: 7250mm
Contact area pressure ratio 0.014*9.8N/cm³

Specification
Operating weight	26000kg
Standard bucket capacity	0.8m 3
Arm length	2912mm
Boom length	5680mm
ENGINE
Model	Isuzu 6BG1TRP
Type	Turbo-charged, inter cooled
Number of cylinder	6
Max. power/rpm	114KW/2100rpm
Max. torque	629N.M at 1600 rpm
Displacement	6.49L
HYDRAULIC SYSTEM
Main pumps
Type	Variable displacement axial piston pumps
Max. displacement	2×107cm 3 /r
Max. flow	20L/min
Working pressure	32Mpa
Hydraulic motor S
Slew	Fixed displacement axial piston motor
Travel	Variable displacement axial piston motors
Performance
Slew speed	11rpm
Min. back slew radius	2828mm
Max. travel speed high/low	5.4/3.2km/h
Grade ability	35°
traction force	279.8kn
Max. digging force of bucket	122.85kn
Max. digging force arm	97.64kn
Groud pressure	0.14kg/cm 3
Tank capacity
Fuel tank capacity	296L
Hydraulic tank capacity	296L

After-sales Service
Warranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.

Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.

Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.

Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.

Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
