Flexo/Offset PLC Control Plate Processor Capacity 50L

Product Description

Feature:
1. PLC control system is adopted to make the performance more stable and reliable; The English display operation panel is very clear and easy to use. You can display and set detailed punching data directly by pressing the button.
2. The tank adopts imported PVC material, durable, reasonable structure, long life designed roller bearing seat and optimized plate travel curve, rubber roller and brush carefully select materials, advanced technology, to ensure smooth plate blanking process.
3. With the wide structure of the submerged tank, the development, washing, gluing and drying can be completed automatically to improve your printing efficiency.
4. The precision development cooling system can control the developer temperature more effectively, and the error is less than ±0.5ºC.
5. Developer automatic injection device, standard with cleaning water gun, more convenient to use.
6. Automatic standby and slow turn function, water and electricity saving design, can save a lot of energy.
7. potion supplement: infrared sensor automatically scans the layout, converted to the correct amount of liquid medicine, and automatically supplement liquid medicine loss caused by the contact between liquid medicine and air when standby, to ensure the liquid depth balance, making the plate quality more stable.
8. Easy maintenance: the clamshell type upper cover structure can facilitate the operator to inspect and maintain the inside of the tank; the chute type roller structure can be easily removed for cleaning and maintenance; the liquid circulation filtration system, water washing system, mechanical transmission system, electrical control system and drying hot air system are convenient for maintenance and maintenance.
Technical Specifications:

Max impact version width	1250mm
Min impact version width	100mm
Min impact version length	300mm
Plate thickness	0.12mm-0.4mm
Developing temperature	17-40ºC
Development time	11-70 Second
Tank capacity	50L
Drying temperature	25-80ºC
Heating rod power	1KW
Drying power	2KW
Make-up pump power	8w*2
Power	3kw
Net weight	420KGS
Gross weight	520KGS
Overall Diameter	1670*1200*1080MM
Wooden box size	1820*1450*1350MM

Detail Configuration:

Main Electrical Part	Brand
PLC	Xinjie (China)
Bearing	NTN(Japan)
Water channel	PVC(Japan)
Rubber roll(60MM)	Taiwan China
Gear wheel	High quality pure nylon
Motor	Dongling (Taiwan, China)

Machine Detailed Pic for Reference:

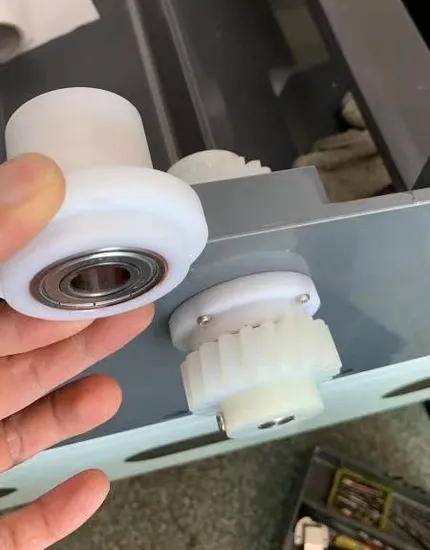

1.Large size gear, made of high-quality nylon
2.Automatic washing of glue on top roller, avoid glue sticking to rubber roller
3. The flip type transparent window is convenient for maintenance. About us Our company focus on researching and designing(R&D), quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our printing and packaging machines have been well accepted by customers from more than 20 countries.
