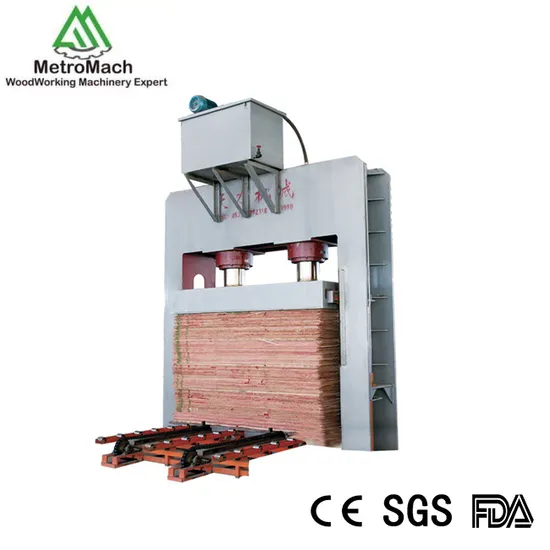

Woodworking Plywood Core Cold Press with Automatic Loading System

US$10,000.00-15,000.00 1 SET (MOQ)

Basic Info.

Model NO.
BY814x8
Structure
Frame Type
Pressing Shape
Flat Press
Platen Surface Pressure
High Pressure
Pressing Layer
Multi Layer
Work Mode
Continuous
Controlling Mode
CNC
Automatic Grade
Automatic
Certification
CE, ISO, FDA
Pressure
400-600t
Voltage
380V,50Hz
Position of Cylinder
Upside/Downside
Net Weight
19000kg
Stroke of Cylinder
1000mm
Thickness of Steel Plate
40mm
Thickness of Acctive Crossbeam
22mm
Transport Package
Standard Export Package
Specification
400T, 500T, 600T
Trademark
Metro
Origin
Shandong, China
HS Code
8465990000
Production Capacity
50set/Month

Product Description

Hot-Sale Upside Pressure Cold Press Machine for Plywood
Application The machine is applied for modern fashion board,plyboard,flak-board,laminating board.woodbased panel board,furniure manufacture,solid board furniture,speaker box,plastic and wooden mould etc.
Cold press for plywood making machine. Cold press machine is the auxiliary in plywood production line, which is used to shorten the cycle time of hot press and improve the quality of plywood before gluing board. Cold press machine belongs to the pressing machine. Cold press machine is mainly used to press the gluing veneer, so that make the initial shape, and then into the hot press machine to press. It is important to improve the quality of plywood, and it is an significant part. Cold press machine in general consists with the rack, fixed beam, moving beam, the plate device, cylinder and hydraulic system, electric control device components.
Advantage of our pre-press equipment
1.Easy to operate, reasonable design, stable performance
2.fast and efficient pressing.
3.Emergency safety braking.
Technical Specification:
Model BY814X8/5Z
Norminal Gross Pressure 5000KN
Direction of feeding plate Horizontal
Max opening 1200mm
Diameter of cylinder 360mm(Wuxi)
Numbers of cylinder 2pcs
Side helpful cylinder 63mmX2
Pressurization ≤25MPA
Stroke of cylinder 1000mm
Position of cylinder Upside
Pressure of unit plate blank 15kgf/cm2
Dimensions of the board 2560X1280mm
Allowed pressure ≤25MPA
Net weight 19000kg
Overall dimensions About 3600X1380X3750mm
Control method Automatic pumping station
Thickness of upper and lower crossbeams 900mm
Thickness of steel plate 40mm
Thickness of acctive crossbeam 22mm
Thickness of steel plate optioned
With chains tranport device

Pictures Show:
