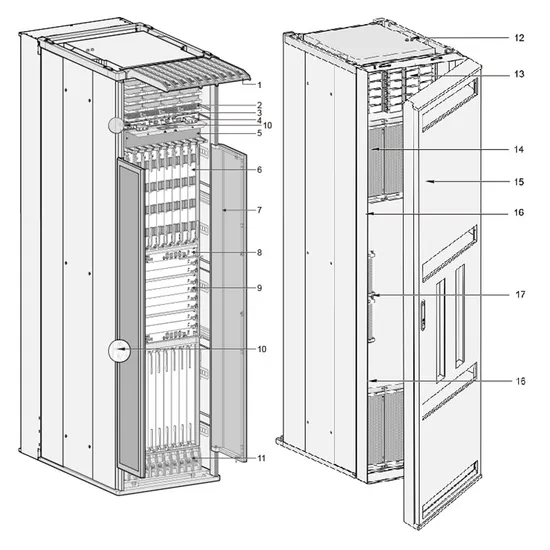

| Cabinet installation standards | The NE9000 chassis is integrated in a cabinet. |
| Dimensions without packaging (H x W x D) [mm(in.)] | 2200 mm x 600 mm x 1000 mm (86.61 in. x 23.62 in. x 39.4 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 2200 mm x 600 mm x 1021 mm (86.61 in. x 23.62 in. x 40.2 in.) |
| Chassis height [U] | 49.5 U |
| Weight without packaging [kg(lb)] | 410 kg (903.9 lb) |
| Weight without packaging (full configuration) [kg(lb)] | 885kg (1951.4 lb) |
| Typical power consumption (with configuration) [W] | Typical 18526W (include 13PMs, 8 LPU FANs, 4 SFU FANs) 2 MPU + 8 SFU + 20 20x100G QSFP28 Typical 32340W (include 19PMs, 8 LPU FANs, 4 SFU FANs) 2 MPU + 8 SFU + 20 40x100G QSFP28 Typical 21276W(include 14PMs, 8 LPU FANs, 4 SFU FANs) 2 MPU + 8 SFU + 20 20x100G QSFP28 |
| Typical heat dissipation (with configuration) [BTU/hour] | 60106 BTU/hour (include 13PMs, 8 LPU FANs, 4 SFU FANs) 2 MPU + 8 SFU + 20 20x100G QSFP28 104925.5 BTU/hour (include 19PMs, 8 LPU FANs, 4 SFU FANs) 2 MPU + 8 SFU + 20 40x100G QSFP28 69028.3 BTU/hour (include 15PMs, 8 LPU FANs, 4 SFU FANs) 2 MPU + 8 SFU + 20 20x100G QSFP28 |
| MTBF [year] | 18.7400 year |
| MTTR [hour] | 0.5 hour |
| Availability | 0.99999 |
| Power supply mode | DC built-in |
| Maximum number of power chassis inputs | (8 channels/PEM)*6 PEM=(2 channels/PM)*6 PM*4 PEM=48 channels |
| Rated input voltage [V] | -48 V / -60 V |
| Input voltage range [V] | -40 V to -72 V |
| Maximum input current [A] | 63 A/single-module |
| Maximum input cable size [mm²] | 35 mm²/channel |
| Front-end circuit breaker/fuse [A] | 2 channels of 63 A/single-module [1T bundle] DC device: 8 PMs, with a total of 16 channels of 63 A [2T bundle] DC device: 9 PMs, with a total of 18 channels of 63 A [4T bundle] DC device: 9 PMs, with a total of 18 channels of 63 A |
| Noise at normal temperature (acoustic power) [dB(A)] | 77.2dBA, NEBS-compliance (< 78 dBA @ 27°C) |
| Number of slots | 32 |
| Number of service board slots | 20 |
| Switching capacity | 209.45 Tbit/s |
| Redundant MPUs | 1:1 |
| Redundant Switch fabrics | 7+1 |
| Redundant CMUs | 1:1 |
| Redundant power supply | [1T bundle] DC: 7+1 [2T bundle] DC: 8+1 [4T bundle] DC: 8+1 |
| Redundant fans | The device has three fan partitions. Each partition has four fan assemblies, which support 3+1 fan assembly redundancy. |
| Long-term operating temperature [°C(°F)] | 0 °C ~ 40°C(32 °F ~ 104.0°F) |
| Short-term operating temperature [°C(°F)] | -5 °C ~ 50°C (23 °F ~ 122.0°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | ≤ 0.5°C/min (32.9°F/min), non-condensing |
| Storage temperature [°C(°F)] | -40 °C ~ 70 °C (-40.0°F ~ 158.0°F) |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device decreases by 1°C [33.8°F] each time the altitude increases by 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| NE9000-20 Integrated DC Chassis Components | 02350JLE | CR5PBKP20D01 |
| NE9000-20 Integrated AC Chassis Components | 02350NLT | CR5PBKP20A01 |
| NE9000-20 Integrated 240V/380V HVDC Chassis Components | 02351FBT | CR9PBKP20D00 |
| NE9000-20 Integrated AC/HVDC Chassis Components | 02352RNM | CR9PBKPKAD01 |
| NE9000-20 Integrated DC Chassis Components B | 02353ARL | CR5PBKP20D00 |
