Waste Dielectric Oil Insulating Oil Transformer Oil Vacuum Purifier (ZY-100)

Product Description

Waste Dielectric Oil Insulating Oil Transformer Oil Vacuum Purifier (ZY-100)
Application
Series ZY high vacuum insulating oil purifier is specially designed for purification of aging transformer oil, mutual inductor oil, switch oil, capacitor oil as well as for other electrical insulating liquids. The process maintains the oil's dielectric strength, removes free, soluble water, air-gases and particulate matter.
Features
1. Duplex-stereo film evaporation technology, dewatering, degassing efficiently
2. Efficient heating system, heating uniformity, safe, reliable, and energy-conserving
3. Double-infrared liquid level sensor, pressure protective system, safe operation
4. Small, light, move conveniently5. Can live operated with electricity
6. Can be as an independent vacuum source for vacuum oiling and drying.
Advantages
Series ZY is efficient and economical insulating oil purifier. Doplex-Stereo film evaporation technology, unique and advanced dewatering, degassing components, making working efficiency is 3-5 tims than traditional oil purifier. Machine adopts interlocked protective system, double-infrared liquid level sensor and pressure protective system to make sure the machine work unattended, operation easy, safe and reliable.
1. Remove water, gas, impurities quickly
2. High efficiency, low cost
3. ISO, CE certificated

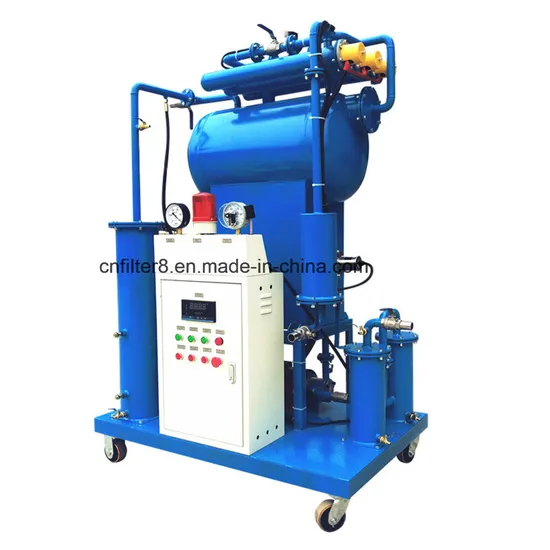

Detailed Image
Techinical Parameters

Parameters		Unit	ZY-6	ZY-10	ZY-20	ZY-30	ZY-50	ZY-100	ZY-150	ZY-200	ZY-300
Flow rate		L/h	360	600	1200	1800	3000	6000	9000	12000	18000
Vacuum degree		MPa	-0.06~-0.095
Working pressure		MPa	≤0.3	≤0.4	≤0.4	≤0.4	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5
Temperature range		°C	20 ~ 80
Continuous working		H	150
Power supply			Three phase,50HZ ,380V(or as per customer requirement)
Working noise		dB(A)	60	61	63	70	70	75	70	70	70
Heating power		kW	9	11	13	15	30	48	58	70	85
Total power		kW	9.7	12.5	14.5	16.5	33.5	53	65	76	94
Oil inlet/outlet		mm	φ20	25	φ25	φ25	φ32	φ42	φ50	φ50	φ60
Weight		Kg	150	230	250	270	300	500	700	900	1100
Size	L	mm	970	1050	1100	1150	1200	1600	1600	1800	1900
	W	mm	630	750	850	900	950	1000	1100	1200	1200
	H	mm	900	1300	1400	1450	1500	1800	1800	1900	1900

Guarantee Value

Item	Guarantee indexes
Moisture content	≤5PPM
Impurity size	≤1 micron
Gas content	≤0.1%
Breakdown voltage	≥70

Our Oil Filtration Machines
Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYD Double High Vacuum Transformer Oil Purifier
Series ZYB Multiply-Function insulating oil treatment machine
Series TY Turbine Oil Purification Apparatus
Series TYA Lubricating oil/ hydraulic oil purification unit
Series TYB Portable light Fuel oil purification machine
Series TYD Vacuum dehydrator
Series TYF Phosphate ester fire-resistance oil purifier
Series PL Plate pressure oil purifier
Series TYD Vacuum dehydrator
Series EFD Explosion protection filtration machine
Series BAM Press filtration system
Series ZKCC Vacuum pumping device
Series COP Cooking oil purification machine
Series CYS Centrifugal oil purification machine
Series JL Portable oil filtering and oiling machine
EOR series waste engine oil recycling system
Transformer Oil Testers
1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Kinematic Viscosity Tester VST-2000
3. Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
4. Fully Automatic Surface/Interface Tension Tester IT-800
5. Fully Automatic Open Cup Flash Point Tester TPO-3000
6.Fully Automatic Closed Cup Flash Point Tester TPC-3000
7.Cloud Point & Pour Point Tester PT-2000
8.Multi-functional Vibration Tester VBT-2000
9.Petroleum Products Density Tester DST-3000
10.Transformer Oil Dissolved Gas DGA Analzyer/ Gas Chromatography GC-2010MD
11.Insulating Oil Breakdown Voltage BDV/ Dielectric Strength Tester IIJ-II(60KV, 80KV, 100KV)
12.Insulating Oil Dielectric Loss/ Resisitivity/ Power Factor PF Tester TP-6100A
About Us
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products have high quality, easy operation, excellent performance and long service life.
Pre-sale Service
*Recommend the most suitable machine according customer's demands.
* Professional pre-sale model/configuration selection advise and technical support -- offered by experienced technician.
* Free on-site installation, debugging and technical training -- offered by strictly trained technology application engineers.
*Offer OEM service.
After-sale Service
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
Safe and Timely Transportation
*Standard export wooden case with high quality cushioning material ensures that the customers get the item in good condition.
*Carefully check every packing detail before delivery to avoid any troubles during the transportation.
*Appointed logistics company could be used according to customers demands.
* Do our best to make sure customers can get their goods in time.

---
