Advanced Vertical Milling Machine with ISO40 Spindle and CNC Capability

Product Description

Product Description

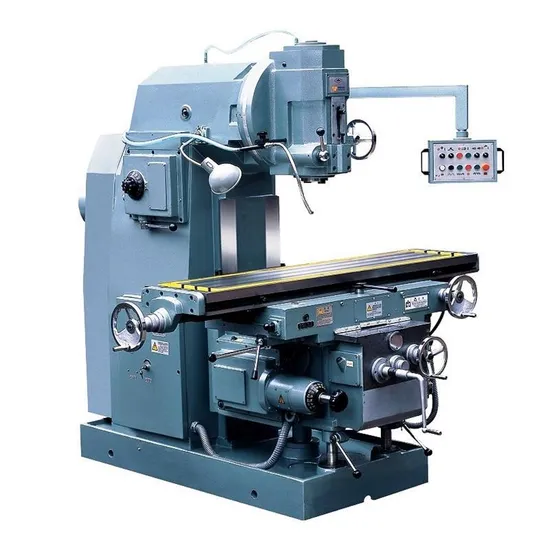

Factory Vertical Milling Machine Models X5040 and X5032 - The Pinnacle of Universal Milling Machine Tools X6140. Introducing the Vertical Knee Type Conventional Manual Mills, a paradigm of engineering excellence and precision.
Our X Series, a heavyweight champion in bed-type universal milling machines, is engineered with a cross table that marries substantial unladen weight, expansive guides, and robust drive power to deliver exceptional cutting prowess. Featuring a versatile universal milling head that can be adeptly swiveled on dual planes, it offers positioning at virtually any spatial angle imaginable. Experience seamless operation with infinitely variable feed on the Y- and X-axes, complemented by rapid traverse capabilities across all axes. The expansive clamping table is designed to accommodate a multitude of workpieces and clamping devices efficiently. Combined with a comprehensive suite of equipment, this machine is tailor-made for industrial and machine manufacturing at the highest level of quality and performance.
1. Enjoy a larger-than-life work area measuring 400*2000mm, providing ample space for complex tasks.
2. Benefit from infinitely variable feed adjustments, offering unparalleled precision and adaptability for every project.
3. This model excels with its horizontal milling capabilities, featuring an outer arbor support for added stability and precision.
4. The spindle incorporates energy-efficient braking, delivering powerful starting torque and ensuring swift, reliable halts.
5. Choose from three distinct worktable movement types across X/Y/Z directions: manual feed, motorized feed, and motorized rapid advance, each designed to enhance operational flexibility.
6. Guided by precision, the X, Y, and Z direction rails undergo advanced ultrasonic quenching, followed by precision grinding and scraping, to ensure unmatched accuracy and durability.

Product Parameters

Specifications	Units	X5032	X5040	X5045
Table size	mm	1320x320	1700x400	2000x450
T-type slot numbers / width /space	mm	3-18-70	3-18-90	18
Max. load of table	kg	500	800	800
Longitudinal travel (manual/auto)	mm	700/680	900/880	1800
Transverse travel(manual/auto)	mm	255/240	315/300	400
Vertical travel (manual/auto)	mm	370/350	385/365	460
Cutting feed speed	mm/min	X.:23.5-1180.Y:15-786.Z:8-394	X.Y:23.5-1180. Z:8-394	X.Y:10-1000 Z:10-450
Rapid feed speed	mm/min	X:2300.Y:1533.Z:770	X.Y:2300..Z:770	1800
Spindle travel	mm	70	85	85
Distance between spindle nose and table surface	mm	60-430	130-515	30-600
Max. swivel angle of table		±45°	±45°	±45°
Spindle speed step	(steps)	18	18	18
Spindle speed range	rpm	30-1500	30-1500	30-1500
Spindle motor power	KW	7.5	11	11
Overall dimensions	mm	2294x1770x1960	2560x2130x2298	2560x2160x2400
Machine weight	Kg	2800	4250	5100

Detailed Photos
Ingenious Machine Design Outstanding Features
1) This state-of-the-art machine tool is meticulously crafted, featuring a robust bed, a versatile lifting platform, a precision worktable, along with a sophisticated main transmission system. It also incorporates an advanced speed change mechanism, an efficient lubrication system, an innovative cooling system, and other essential components.
2) Engineered for excellence, the machine tool boasts exceptional power and an extensive speed range. It empowers operators to unleash the full potential of high-performance tooling, easily accommodating carbide tools for exhilarating high-speed cutting.
3) The machine's worktable is designed for ultimate versatility, allowing both manual and motorized feeding in vertical and horizontal directions. Powered by a dynamic feed box, it offers 8 distinct feed speeds plus 1 rapid feed speed for optimal operation. The main transmission utilizes a highly efficient gear transmission system, offering large torque, an extensive speed range, and a broad selection for unparalleled performance.
Our Advantages
Packaging & Shipping
Company Profile
Henan Rowdai Machinery Equipment Co., Ltd. is strategically situated in Zhengzhou, the pulsating heart of China. Our central location enhances our logistics and distribution capabilities, ensuring swift and efficient service. With an extensive history of exporting high-quality machines, we not only supply our discerning customers with consistently superior products but also deliver unparalleled service excellence. We proudly offer a comprehensive range of machine tools to the global market, including but not limited to Lathe Machines, CNC Lathe Machines, and our flagship product, the Advanced Vertical Milling Machine with ISO40 Spindle and CNC Capability. Additionally, our catalog features a wide array of precision equipment such as CNC Machining Centers, Grinding Machines, and Hydraulic Presses. We also provide Bending Machines, Drilling Machines, Press Brakes, Shearing Machines, and a full suite of machine tool accessories, all meticulously designed to meet the rigorous demands of various industries. Our team of expert engineers, each boasting years of invaluable experience and advanced professional training, stands ready to support our customers at every step. These skilled professionals are capable of performing pre-shipment inspections and overseeing the entire production process. Our engineers are dedicated to ensuring that our products meet the highest standards of quality, thereby providing our clients with the utmost confidence in their purchases. From production to delivery, our commitment to excellence ensures that we exceed customer expectations and maintain our reputation as a leader in the machinery sector.
After Sales Service
1. A detailed Operation Manual will accompany your Advanced Vertical Milling Machine, empowering you with step-by-step guidance.
2. During the generous warranty period, we ensure peace of mind by offering spare parts absolutely free of charge.
3. Our dedicated 24-hour online Service Team stands ready to assist you with any challenges, ensuring uninterrupted operations.
4. We enhance our after-service experience with interactive video assistance, offering a variety of communication methods including video calls, phone consultations, and online meetings,, all designed to ensure that you optimize the use of your machine..
FAQ
1:How can I choose the most suitable machines?A: Please tell me your specifications. We can choose the best model for you, or you can choose the exact model. You can also send us the product drawing, and we will select the most suitable machines for you.2: What about the quality of the machine? And after-sales service?A: Our machine warranty period is 1-2 years, and we provide free technical service.3: What are your trade terms?A: EXW, FCA, FOB, CFR, CIF, DDP etc. are all acceptable.4: What are the Payment Terms?A: T/T, 30% initial payment when ordering, 70% balance payment before shipment;5: What's the MOQ?A: 1 set

---
