| US$7,500.00-26,000.00 | 1 Piece (MOQ) |
| SPECIFICATIONS | Units | CAK6180 CAK6180B CAK6180C |
| Swing over bed | mm | 800 |
| Swing over cross slide | mm | 520 |
| Distance between centers | mm | 750/1000/1500/2000/3000 |
| Spindle bore | mm | 52 (80 for B) [105 for C] |
| Spindle bore taper | - | MT6 (90 1:20 for B) [113 1:20 for C] |
| Spindle nose type | - | C6 (D8 for B) |
| Spindle speed steps | - | Manual 3 steps |
| Spindle speed range | rpm | 21-150,66-500,162-1500 |
| Turret/tool post | - | Electric 4 position |
| Tool size | mm | 25*25 |
| X axis travel | mm | 400 |
| Z axis travel | mm | 500/750/1250/1750/2750 |
| X axis rapid traverse | mm/min | 6000 |
| Z axis rapid traverse | mm/min | 10000 |
| Tailstock quill diameter | mm | 75 |
| Tailstock quill taper | - | MT5 |
| Tailstock quill travel | mm | 150 |
| Main motor power | kw | 11 |
| Coolant motor power | kw | 0.125 |
| Weight for 750 | kg | 2750 |
| Weight for 1000 | kg | 2850 |
| Weight for 1500 | kg | 2950 |
| Weight for 2000 | kg | 3450 |
| Weight for 3000 | kg | 4250 |
| Dimension for 750 | mm | 2550*1750*1900 |
| Dimension for 1000 | mm | 2750*1750*1900 |
| Dimension for 1500 | mm | 3250*1750*1900 |
| Dimension for 2000 | mm | 3700*1750*1900 |
| Dimension for 3000 | mm | 4710*1750*1900 |

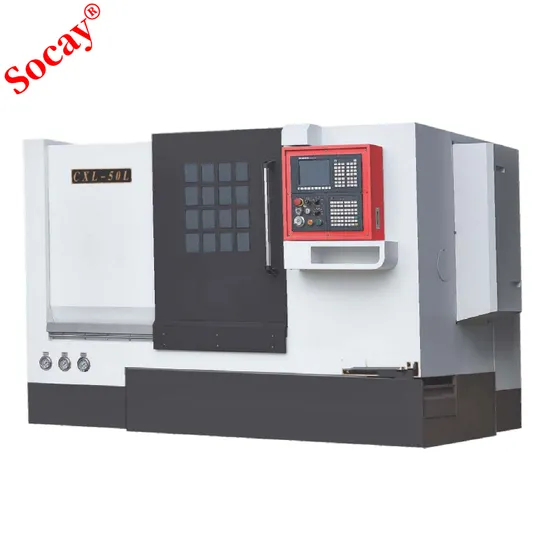

| INTEGRAL CASTING STRUCTURE 1.High strength high quality one piece cast iron. 2. Adopt 30 degree slant bed casting LINEAR RAIL Standard:Taiwan HIWIN Ball linear rails. CONTROL SYSTEM Standard:GSK 988TA controller system. HYDRAULIC SYSTEM Hydraulic system to give power supply for hydraulic chuck and hydraulic tailstock HYDRAULIC TURRET Standard: 8 position hydraulic turret ELECTRICAL COMPONENTS Standard:Sneider electrical components AVIATION QUICK PLUG Easy for connect ,Convenient and fast | SPINDLE UNITS Standard: china famous spindle unit, spindle speed stepless 4500rpm SCREW Standard:Nanjing/Taiwan Screw using SKF bearing. HYDRAULIC CHUCK Standard: A2-6 spindle with 8 inch hollow hydraulic chuck. LUBRICATION SYSTEM HERG Automatic centralized lubrication device . HYDRAULIC TAILSTOCK 1.Standard hydraulic tailstock 2.Hydraulic control auto tailstock sleeve. AIR CONDITIONER with Industrial electrical cabinet air conditioner. Cooling the electric box better . TESTING Each machine passed Renishaw laser interferometer testing |
| Dongguan Socay CNC has : More than 80,000m² of the factory with more than 200 workers.(including the cnc machining factory) Strictly QC control with more than 24 steps testing processes. 30+ years CNC machine manufacture experience factory. 24 hours online service at any time. Trade with customers in 100+ countries around the word . Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect. Support ODM OEM. Warranty time is 18 months. Adhering to the "Best Machine by Socay" purposes, We provides better quality machines more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation. |
| Dongguan Shuokai Machinery Co., Ltd.. Has got many international certifications such as lSO, WIPO, CE, BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and South east Asia, And we provide long-term overseas technical guidance and after-sales service for these countries . |
| 1: What's your main products of your company? A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center , Double Column Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 2:What kind of controlsdo you use on machines? A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements . 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4 : How can I choose the most suitable machines ? A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality. You can also send us product pictures and we will choose the most suitable machine for you. 5 : Do we receive any updates while machine is in the manufacturing process? A : Of course. The progress of the machine will be updated regularly and sent to you. |
