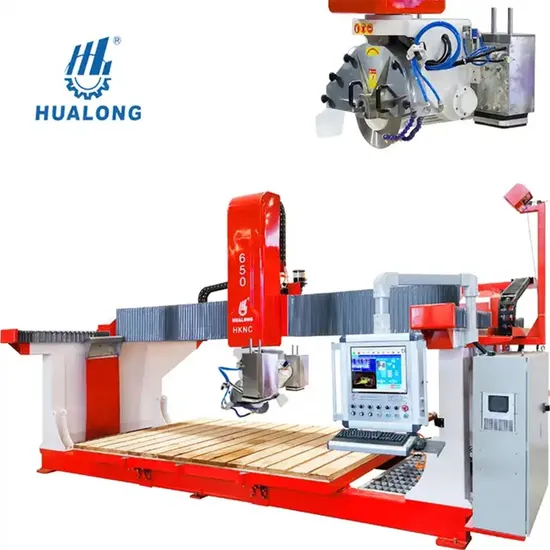

Hualong Hknc-650X Bridge 5 Axis Stone Cutting Saw CNC Machine

Product Description

TECHNICAL DATA FOR HKNC-650X
Diameter of saw blade	ø350-ø650	mm
Dimension of working platform	350x210	cm
Max. cutting length	350	cm
Max. cutting thickness	190	mm
Max. lifting stroke	500	mm
Max. lifting weight by sunction cups	200	kg
Power of main motor	15	kw
Power of cutter frame reciproctating motor	1.15	kw
Power of crossbeam shifting motor	1.15	kw
Power of hydraulic station motor	2.2	kw
Power of lifting motor	0.85	kw
Gross power	30.35	kw
Water consumption	2	m3/h
Gross weight	5800	kg
Dimensions (L x W x H)	630x360x310	cm

Main Features

1) 5 axis linkage control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Combine fuctions of carving, milling, cutting, drilling, engraving into an organic whole for complex processing.
4) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
5) Working platform can tilt 85 degrees, easy for slabs loading.
6) Manual cuts available for simple machining.
7) Vacumm manipulator for workpieces handling.
8) Photo slab for nesting and avoiding defects.
9) Nesting manual / automatic to optimize slab surface usage
10) RTCP tool point tracking function ensure precision machining easy.
11) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
Application fields: * 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades


Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
