| Negotiable | 100 PCS (MOQ) |
| 1 person operate SAFTY BREAK SYSTEM EARTH AUGER MACHINE Basic info HY-GD680-XK-829 | |

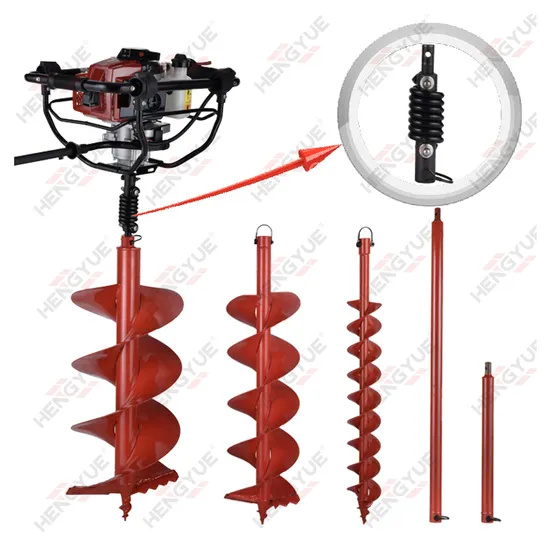

| With safty break system , suitable for 1 person operate model , 68cc gasloine enigne Earth auger . φ25mm and φ12mm tube ,V & Rectangle form to surround engine and gear case . Base on this design , the handle could protect the engine and gear case ,safty for usere .The most popular package way is Earth auger with manual , tool kits and other attached accessories of the earth auger packaged in one carton/ color box . | |
| Certificate : EC EMC EPA EURO-II EURO-V ISO9001:2015 | |
| Engine model: 1E48F-II 2 stroke | Handle design:φ25mm and φ12mm tube ,V & Rectangle form |
| Engine power: 2.3kw / 8800±300 rpm/min | Trigger : luxury with automatic reset switch & safty arm |
| Displacement : 68CC | Vibration reduction system: 3 pcs rubber & 1 pcs metal |
| Max output speed:8800±300 rpm/min | Transmission: Gear wheel ( 2 stages ) |
| Fuel tank capacity: 1600 ml | Gear case : With safty break system (Model - GC05-2015 ) |
| Fuel tank : (Optional ) | Gear wheel metrial :20CrMnTi |
| *Normal standard fuel tank | Gear wheel structure : Helical (rounded corner) |
| *With external balance air level (Basic) | Main gear wheel contact with output shaft : Spline |
| Fuel: Gasoline mix 2 stroke Oil (25:1) | Output rate: 29:1 (Basic) |
| Clutch : (Optional ) | Output shaft type : (Optional ) |
| * 2 Pcs hoof blocks (Basic) | * Spline |
| * 4 pcs hoof blocks | * Cylinder φ20mm (Basic) |
| Starting systerm : Recoil | * Cylinder φ22mm |
| Starter: (Optional ) | Max drive ability : ≤ φ 300mm auger bit |
| *Normal starter | Recommend drive :≤φ 250mm auger bit |
| *Supper easy starter: 2 pcs spings & 1 pcs needle bearing (Basic) | Auger bit size : φ40/60/80/100/150/200/250/300mm |
| Others info | |
| G.W/N.W :13.05/11.23 kg | Package size : 46.5X42.5X41.5CM (Basic) |
| HS code :8467890000 | Package way : Color box/ Carton (Basic) / with auger bits for sets by carton |
| Production time : 25-30 days | Shipment port : NINGBO / SHANGHAI |
| Notice | |
| 1. Marked as (Basic) in the technical parameters is completely consistent with the product picture. | |
| 2. Marker as (Optional) . buyer can according to actually need to choose | |
