Tck46A High Precision China Hortizontal Slant Bed CNC Lathe

Product Description

Tck46A High Precision China Hortizontal Slant Bed CNC Lathe Product Description

Product features:
Highest accuracy Taiwan linear guide ways
Higher speed spindle unit ,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Application :
The machine is suitable for automobile, motorcycle, electronics, aerospace, military, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.
Main technical specifications:

Specification	Unit	TCK46A
Max.swing over bed	mm	460
Max.swing over cross slide	mm	260
Max. Processing length	mm	350
Max. Bar capacity	mm	45
Max.processing diameter of plate type of workpiece	mm	400/320
Spindle nose type		A2-5
Spindle bore	mm	56
Spindle speed range	r/min	50-3500
Main motor power	kw	7.5
Chuck form		Hydraulic chuck
Chuck size	inch	8
X axis rapid traverse	M/min	24
Z axis rapid traverse	M/min	24
X axis servo motor torque	N.m	7.5
Z axis servo motor torque	N.m	7.5
X axis travel	mm	240
Z axis travel	mm	400
Guide rail type		linear rail
Tool post type		Horizontal 8/12 station
Tool shank size	mm	25x25/dia.32
Tailstock type		hydraulic
Tailstock quill dia.	mm	70
Tailstock quill travel	mm	80
Tailstock quill taper		MT5
Total rated power	kw	11
Total rated current	A	23
Machine weight	kg	3000
Machine dimension	mm	2500x1700x1890

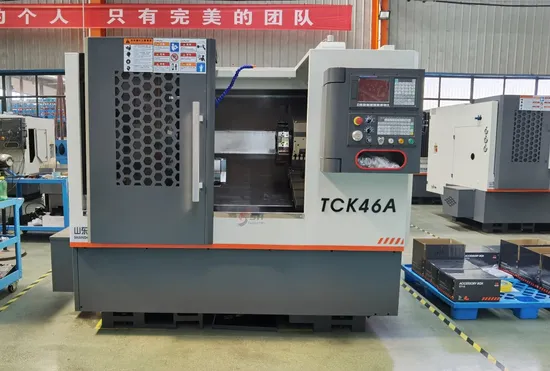

Detailed Photos


Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
