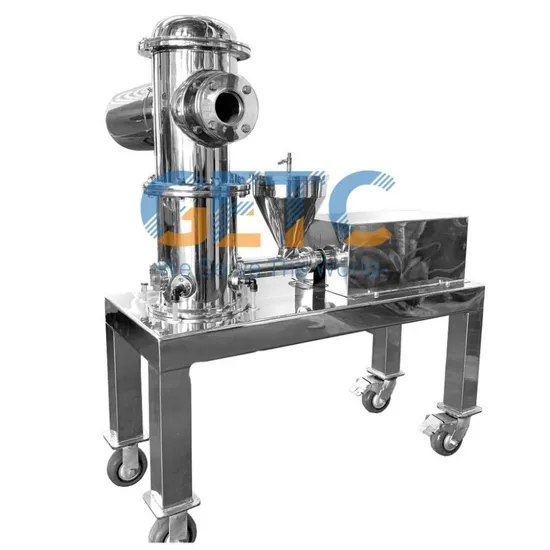

Customized Fluidised Bed Opposed Jet Mill Grinding Machine with Classifier for Pesticide

Product Description

Product Description DCF series jet mill is a fluid bed jet mill which features opposed grinding nozzles and a dynamic classifier. Air or inert gas at elevated pressure is injected through specially designed nozzles directly into the grinding chamber of the mill, creating a sonic or supersonic grinding stream. Raw feed is automatically introduced to the mill chamber by an interlocked feed control system.
The agitation provided by the grinding chamber and nozzle design cause particles to become entrained in the air or inert gas stream. Particle size reduction is accomplished by high velocity collisions between particles. Small particles are then swept towards the classifier which rotates at high speed above the grinding. The speed of the classifier is preset for the proper sized product and is electronically controlled. Material which is fluidized fine enough to overcome the inertial force generated by the classifier escapes the jet mill and is collected as product. Oversized particles are recycled by the classifier back into the grinding chamber for further reduction.
With the advanced design of the integrated, dynamic classifier, particle size distribution can be more easily controlled. Efficient use of compressed air and total system automation ensure manufactured product is of the highest quality. Capable of grinding dry powders to 0.5~45 micron averages with specific top size and/or bottom size requirements.

Features • Classifier wheel arranged horizontally in the classifier top section.
• Laboratory up to Production Models.
• Cool and contamination-free grinding.
• Rapid cleaning and easy validation.
• low production loss.
• Top sizes as fine as D90 of 1 micron.
• Low noise (less than 75 dB).
• Variable speed classifier wheel for precise classification.
• Feature a Ceramic, PU lining to different materials.
• Be used to grind heat-sensitive products with critical heat limitations.
• Suitable for Chemicals, Minerals, Pharmaceuticals & Food Products. Applications • Heat-sensitive materials such as toner, resin, wax, fat, ion exchangers, plant protectors, dyestuffs and pigments.
• Hard and abrasive materials such as silicon carbide, zircon sand, corundum, glass frits, aluminium oxide, metallic compounds.
• Highly pure materials where the requirement is contamination-free processing such as fluorescent powders, silica gel, special metals, ceramic raw materials, pharmaceuticals.
• High-performance magnetic materials based on rare earth metals such as neodymium-iron-boron and samarium-cobalt. Mineral raw materials such as kaolin, graphite, mica, talc.
• Selectively ground composite materials such as metal alloys.
Product Parameters

Model	Air Consumption (m3/min)	Working Pressure (MPa)	Target Size (micron)	Capacity (kg/h)	Installed Power (kw)
DCF-50	1	0.7-0.85	0.5-30	0.5-3.0	8
DCF-100	2	0.7-0.85	0.5-30	3-10	16
DCF-150	3	0.7-0.85	0.5-30	10-150	40
DCF-250	6	0.7-0.85	0.5-30	50-200	60
DCF-400	10	0.7-0.85	0.5-30	100-300	95
DCF-600	20	0.7-0.85	0.5-30	200-500	180

Related Products
Spiral Jet Mill Disc Mill Hammer Mill
Company Profile Changzhou General Equipment Technology Co., Ltd. is located in LiYang city, a famous scenic and tourist city in JiangSu Province. It is a high-tech equipment manufacturing enterprise . The company is located in the local High-tech Machinery Industrial Park, with very convenient transportation.

The company covers an area of 70,000 square meters, plant area of 50,000 square meters, nearly 100 employees. The company has high-end processing equipment & testing equipment; It has D1 and D2 pressure vessel design qualifications and A2 pressure vessel manufacturing qualifications.Our main products are including Jet Mill Micronizer, Mixer, Granulator and Dryer, Chemical Equipment: Reactor, Heat Exchanger, Column, Tank and Environmental Protection Equipment, etc .
We provide technology research and development, process design, equipment manufacturing, installation and commissioning, project contracting and other comprehensive services. Our products are quite widely applied in the industry of petrochemical industry, Pharmaceutical , Agricultural Chemistry, New Energy, thermal power, steel smelting, Environmental Protection and other Service.Our customers are from the domestic and overseas markets, product quality and fantastic service are deeply praised by customers and partners.
We adhere to the concept of "Scientific Management, Advanced Technology, Quality Priority & Win-Win Cooperation", pursue the enterprise purpose of "Market by Quality, Win customers by Reputation, and seek development by Science & Technology", carry forward the enterprise culture, deepen the enterprise management, enhance the enterprise image, actively create new high-quality products, to provide customers with the superior quality.
Sincerely welcome all customers to visit our company for guidance and cooperation, let's make a better future together.
