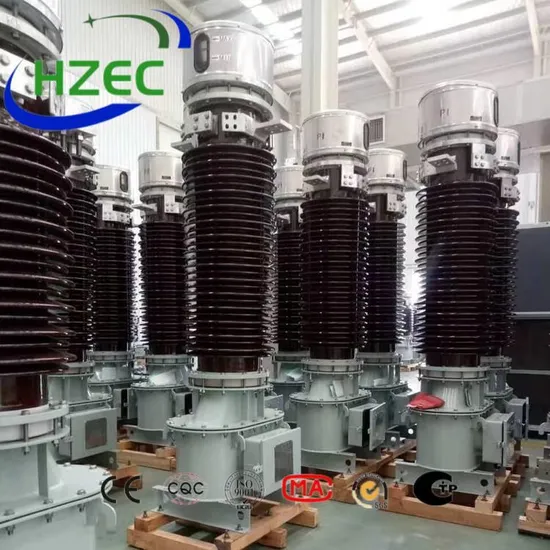

Single Phase 33kv 66kv 230kv High Voltage Outdoor Current Transformer

Product Description

Company ProfileHenan Energy Electric Equipment Co., Ltd. was established in 2011 and is an excellent and reliable power equipment manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations, high-voltage switches, and medium and low voltage complete sets of equipment. The equipment put into production and operation of the project advocates energy saving, intelligence, informatization, and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents. With years of accumulation in the transformer industry and strong technological innovation capabilities, HZEC products are sold to the Middle East, North America, South America, Europe, Southeast Asia, Africa, and other regions, covering more than 40 countries.
Product DescriptionIt is outdoor,single phase and organic insulation dry-type current transformer, which is used for metering and relay protection of 33-230kV,50 or 60Hz system.
Standards:
IEC 61869-1;IEC 61869-2
GB 20840.1; GB 20840.2
Product Features1. It is organic insulation type product.The external insulation is silicone rubber petticoat.
2. Electric field evenly distributed, small partial discharge and stable, small dielectric loss.
3. The current ratio can be adjusted easily by changing the wiring method at shielding enclosure through series or parallel connection.
4. The product has nooil, no ceramic, no gas, pollution-free.
5. Barely need for maintenance. Just need to measure capacitance and dielectric loss factor every 2~3 years.
6. The base uses spray painting or hot galvanizing, which gives a high degree of corrosion resistance.
7. Fasteners and nameplate are stainless steel.
Product Parameters

Rated voltage,kV	33 or 35	66 or 69	110 or 115	132 or 138	150	220 or 230
Highest voltage for equipment,kV	36 or 40.5	72.5	123 or 126	145	170	245 or 252
Rated frequency,Hz	50 or 60
Rated power frequency withstand voltage,kV	95	160	230	275	325	460
Rated lightning impulse voltage,kV	200	350	550	650	750	1050
Flashover distance,mm	385	700	1100	1300	500	2100
Cree.distance,mm	W1:810 W2:1020 W3:1260	W1:1450 W2:1820 W3:2250	W1:2520 W2:3150 W3:3910	W1:2900 W2:3630 W3:4500	W1:3400 W2:4250 W3:5270	W1:5040 W2:6300 W3:7820
Mechanical load,N	3000	3000	3000	3000	3000	4000
Rated primary current,A	5~2500
Rated secondary current,A	1;2;5
Accuracy class	0.1;0.2;0.5;0.2S;0.5S;5P;10P;PX...
Rated output(recommended value),VA	1A:10~30 VA 2A:10~30 VA 5A:15~50VA
Instrument security factor FS	5:10
Accuracy limit factors ALF	10,15,20,25,30
Short-time thermal current(Maximum),kA	40kA/3s

Outline Diagram Examples
Service Environment1. Ambient temperature:-40ºC- +45ºC
2. Altitude:≤2000m(If above 2000m,the product will be customized according to user's request)
3. Pollution level: II, III, IV.
Packaging & ShippingCertifications

---
