| US$350.00-440.00 | 1 Piece (MOQ) |
| model | IPFT-100-GS/SS | IPFT-150-GS/SS | IPFT-200-GS/SS | IPFT-300-GS/SS | |

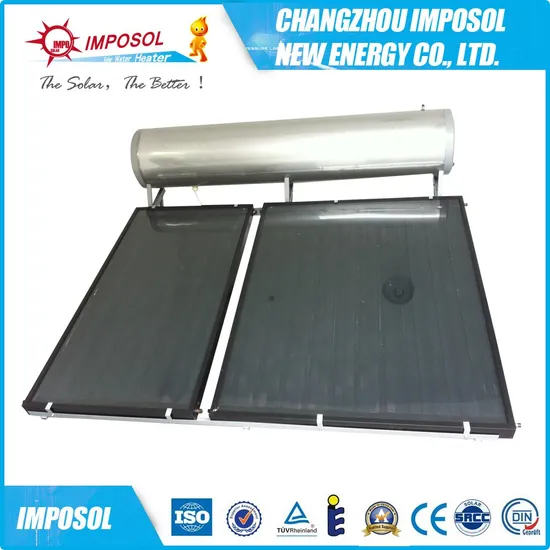

| flat plate solar collector | quantity dimensions light area coating header insulation | 1 1,030*2,030mm 1*2.00 selective absorbing Cu 22 mm Glass wool | 1 1,030*2,030mm 1*2.00 selective absorbing Cu 22 mm Glass wool | 1/2 1,030*2,030mm 1/2*2.00 selective absorbing Cu 22 mm Glass wool | 2/3 1,030*2,030mm 2/3*2.00 selective absorbing Cu 22 mm Glass wool |
| water tank | capacity diameter operating pressure insulating layer insulation thickness connections inner material outer material | 100L 540mm/580mm 6bar polyurethane 50mm 3/4″ SUS 304/SUS316L color steel/SUS | 150L 540mm/580mm 6bar polyurethane 50mm 3/4″ SUS 304/SUS317L color steel/SUS | 200L 540mm/580mm 6bar polyurethane 50mm 3/4″ SUS 304/SUS318L color steel/SUS | 300L 540mm/580mm 6bar polyurethane 50mm 3/4″ SUS 304/SUS319L color steel/SUS |
| support | material Anti-corrosin use | hot Galvanized steel Powder coated Flat and slope roof installation | |||
| connection pipe | Material Diameter insulating material insulation thickness | flexble stainless steel pipe DN20-3/4″ elastomer rubber with protective PE film 20mm/13mm | |||
