Compact Pdf Temperature & Humidity Data Logger

US$20.00-50.00 10 Pieces (MOQ)

Basic Info.

Model NO.
YPM-1
Standard
Celsius/Fahrenheit, Celsius, Fahrenheit
Accuracy
≤0.5°C
Usage
Industrial, Household
Display
Digital
Material
Radiation
Hygrometer Type
Dry and Wet Bulb Thermometer
Measuring Range
-30~70ºC, 0~100%Rh (Internal Probe)
Resolution
0.1ºC, 0.1%Rh
Data Storage Capacity
17280 (for Each Channel)
Sample Interval
10sec. to 18hours
Typ. Battery Life
2.5 Years(25ºC, 15min. Interval)
Alarm Delay
0~960min.
Alarm Type
Single Type; Accumulation Type
Start Delay
0~254min.
Size/Weight/Case Material
75mm X 28mm X 10mm / 20g / ABS
Protection Class
IP40
Communication Interface
Build-in USB 2.0
Power Supply
Cr2032 3.0V Lithium Battery (Factory Replaceable)
Configuration Software
Pidifix (Windows 7&8&Vista&10 32&64bits)
Transport Package
Cardboard Box
Specification
-30~70º C, 0~100%RH (Internal probe)
Trademark
YBOTECH
Origin
China
HS Code
9027300090
Production Capacity
3000000PCS/Day

Packaging & Delivery

Package Size
15.00cm * 15.00cm * 15.00cm
Package Gross Weight
1.000kg

Product Description

[Descriptions]

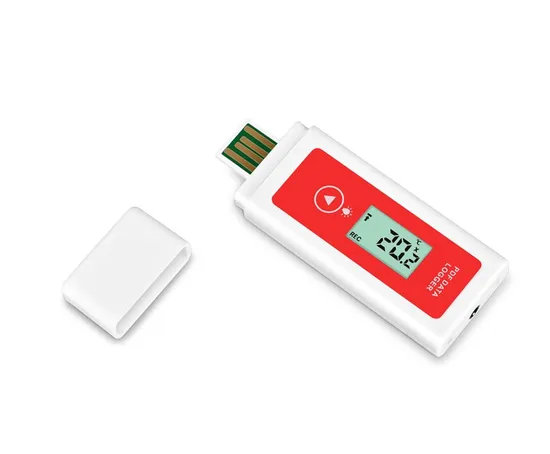

These data loggers are ideal to monitor the temperature and humdity in transportation, storage and testing process. Recording can be started and stopped by pressing the button. User can get PDF reports by connecting the device into PC without any software or driver.
[Features and Functions] Generate PDF report without any software and driver Built-in USB interface LCD shows recording status, readings, limit and alarm indication 3 mark points supported User configurable LED status and alarm indication Low battery warnings Internal probe To save as txt / csv / xls / dlg file via PC software Password control Re-calibrate supported [Applications]
This recorder is mainly used in cold chain transportation, refrigeration, warehouse, HVAC, food & pharmaceutical of medicines, food, goods, equipments and environments that are sensitive to temperature and humidity.
[Specifications]
Specifications YMP-10D (LCD) YMP-11D (LCD) YMP-10 YMP-11 YMP-11LT
Use type Multi-use
Measuring range -30~70ºC (Internal probe) -40~70ºC (Int. )
Accuracy (typ.) ±0.5ºC ±0.3ºC(-15.0~70.0ºC) ±0.5ºC(-30.0~-15.1ºC) ±0.5ºC ±0.3ºC(-15.0~70.0ºC) ±0.5ºC(-30.0~-15.1ºC) ±0.3ºC(-15.0~70.0ºC) ±0.5ºC(-30.0~-15.1ºC) ±0.7ºC(-40.0~-30.1ºC)
Resolution 0.1ºC
Data storage capacity 30240
Sample interval 10sec. to 18hours
Typ. battery life 2.5 years(25ºC, 15min. interval) 2.5 years 25ºC, 15min
High and low alarm User configurable
Alarm delay 0~960min.
Alarm type Single type; Accumulation type
Start delay 0~254min.
Start mode By button
Stop mode By button; Memory full; When into USB
Operation environment Same as measuring range
Storage environment Same as measuring range
Size/Weight/Case material 75mm x28mm x 10mm / 20g / ABS
Protection class IP40 IP44
Standards/Certificates CE, ROHS,EN12830
Communication interface Build-in USB 2.0
Power supply CR2032 3.0v lithium battery, factory replaceable 3.6v lithium factory replaceable
Configurable software PidifiX (windows 7&8&vista&10 32&64bits)
Warranty 12 months
