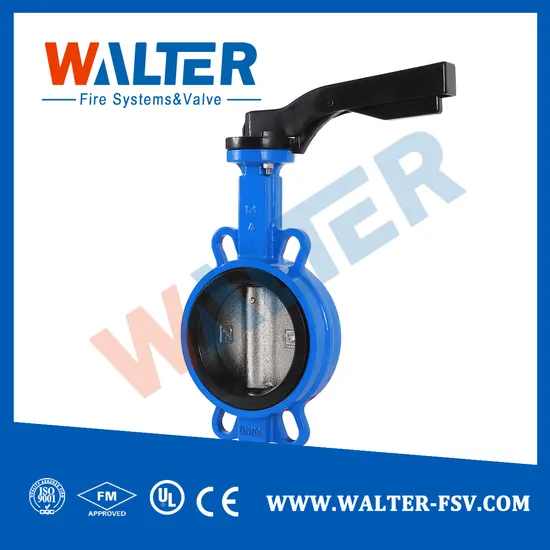

Wafer Type Centric Butterfly Valve

US$19.80

10-99 Pieces

US$18.90

100+ Pieces

Basic Info.

Model NO.

Connection Form

Wafer

Structure

Centre Sealing

Seal Form

Force Sealed

Valve Stem

Normal

Work Pressure

Low Pressure (Pn<1.6mpa)

Working Temperature

Normal Temperature (-40°C<T<120°C)

Material of Seal Surface

Soft Sealed

Valve Body

Casting

Application

Industrial Usage, Water Industrial Usage, Household Usage

Name

Hand Lever Butterfly Valve

Body

Ductile Iron /Cast Iron/Wcb

Disc

D.I/Ss304

Stem

Ss304/410/316/420

Seat

EPDM/NBR/PTFE

Coating

Epoxy Resin

Connection

Wafer/Lugged/Flanged

Size

Dn40-600

Pressure Rate

Pn10/16

Transport Package

Bubble Bags & Wooden Case

Specification

2"-24"

Trademark

WALTER/ No Brand

Origin

Suzhou, Jiangsu

HS Code

8481804090

Production Capacity

20000 Sets Per Month

Product Description

WALTER-FSV Company Produce Cast Iron Wafer Butterfly Valves, with hand lever or worm gear Operator. Our Butterfly Valves are widely used in drinking water system, sewage system, fire-fighting system. Butterfly Valves can produce from size DN40 to DN2400.
1- Body: Ductile Iron GGG40/50 or Cast Iron GG25
2- Spindle: SS420/SS431/SS416
3- DISC: Ductile Iron, Cast Iron. SS304 (CF8) Stainless steel
4- Seat: EPDM or PTFE
5- Pin: Stainless Steel
6- Epoxy Resin coating internal & external, thickness above 250 micron
7- Connection: Wafer type, lug type, flange type
8- Work pressure: PN10/16; Size Range: 2" to 72 "
9- Design Standard: DIN, EN558-1, API609; Top flange: ISO 5211;
10- Operate: Handwheel or Worm Gear, Actuator or pneumatic.
Our company Walter-FSV also provide OEM service for Butterfly Valve, Gate Valve, Swing Check Valve, Titling Check Valve, Non-return Valve, Pressure Reducing Valve, Fire Hydrant, Fire Hose, Fire Sprinkler.
