US$50,000.00-100,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Transport Package
Woodencase
Production Capacity
1000pic/Year
Product Description
Product Description

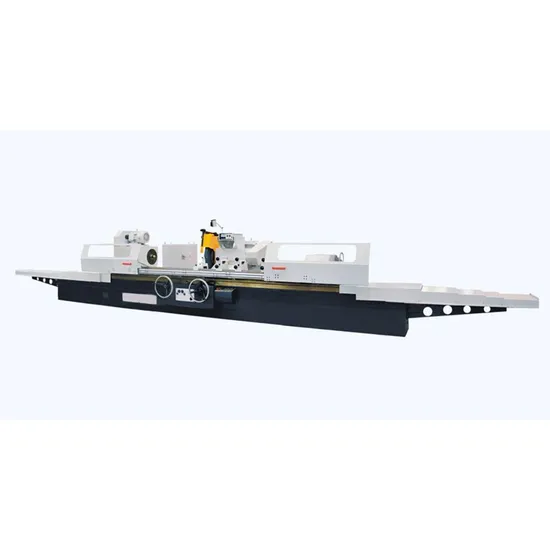

M1350B cylindrical grinding machine is designed forgrinding cylindrical or taper surface of rotational parts. It ishighly adaptable for single and small batch production.
·The table traverse is actuated by hydraulic means at infinitelyvariable speed or operated by hand.
· Auto intermittent micro-infeed and rapid approach,witherawal of the wheelhead can be effected hydraulically,while rough-fine-feed realized by handwheel.
·Worktable guideways are hydrostatically lubricated.
· The grinding wheel spindle is supported by three tiltingsegmented shoes.
·Workpiece, wheel, hydraulic pump, coolant pump are drivenseparately by individual motors.
· Each motion part of machine is controlled by electric,hydraulic, mechanical interlocking mechanism, thus themachine can be operated easily and safety.
Product Parameters
| ITEM | UNIT | M1350B×1500/2000/3000/4000 | M14 50B×1500 /2000/ 3000 /4000 |
| Max. dia. to be ground | mm | 500 | 500/200 |
| Max. length to be guound | mm | 1500,2000,3000,4000 | 1500,2000,3000,4000/320 |
| Max. workpiece weight | kg | 1000 | 1000 |
| Wheelsize (O.D. xWxl. D) | mm | φ750×75×φ305 | φ500×75×φ305 |
| Wheel spindle rotation speed | r/min | 870 | 1300 |
| Center height | mm | 270 | 270 |
| Max. worktable traverse | mm | 1500,2000,3000,4000 | 1500,2000,3000,4000 |
| Max.worktable travel speed | m/min | 3 | 3 |
| Wheel peripheral speed | m/s | 38 | 38 |
| Wheelhead rapid approach and withdrawal travel | mm | 100 | 100 |
| Automatic intermittent infeed (coarse/fine) | mm | 0.02/0.0025 | 0.02/0.0025 |
| Manual microfeed (coarse/fine) | mm | 0.02/0.0025 | 0.02/0.0025 |
| Hydraulic pump displacement | L/min | 17.3 | 17.3 |
| Hydrauiic pump pressure | Mpa | 6.3 | 6.3 |
| Coolant flow | L/min | 50 | 50 |
| Total motor power | KW | 20.63 | 14.08 |
| Machine weight(net weight) | kg | 8400,9700,11200,12800 | 8600,9900,11350,13100 |
| Overalldimensions(Lx WxH) | mm | (1500)5320x2140x1550 | 5320x2680x1560 |
| | | (2000)6090x2140x1550 | 6090x2680x1560 |
| | | (3000)10240x2140x1550 | 10240x2680x1560 |
| | | (4000)12280x2140x1550 | 12280x2680x1560 |
Detailed Photos
>>
