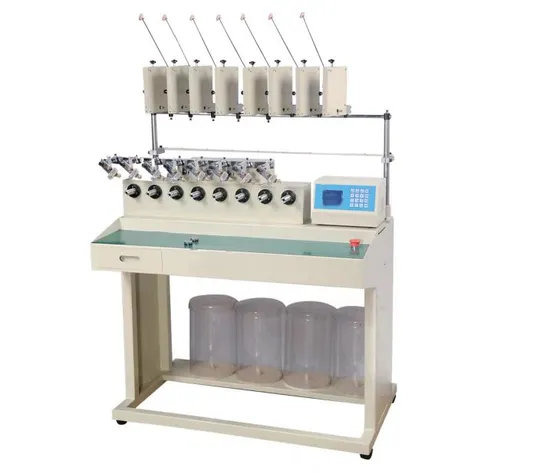

High Speed Semi-Auto Eight Spindles Coil Winding Machine with Wire Diameter 0.05-0.35mm

Product Description

Specificaton
GWP-08 High speed Semi-auto Eight Spindles Coil Winding Machine

Number of spindles	8
Spindle speed	0-10000rpm
Wire diameter	0.05-0.35mm (with different tension system)
winding diameter	0-50mm
spread width	0-60mm
Spindle motor	750W+1HP Inverter

Description of main components:

Controller	Weiding controller, with Weilun 7 inch full LCD touch screen in English
Screw	TBI, C-class precision
Timing belt	BANDO
Bearing	NSK
Tensioner	Mechanical by Self development
Main cabinet	Cast iron cabinet Self development
Working platen	Cast iron platen Self development

FEATURES:
1.Using 32-bit ARM control chip, Xilinx CPLD, the operation speed is faster, effectively reducing the line error.
2.All input and output are optically isolated, working stably.
3.Full LCD display in English, easy to operate.
4.Intelligent input winding point and winding width.
5.The winding frame is reversing intelligently decelerating to ensure a faster torque at the same time.
6.You can set the spindle accelerating time in controller, change the spindle speed in real time, and overspeed tracking.
7.Saving the winding data automatically when power-down, effectively avoiding coil scrapping caused by sudden power failure.
8.The position of the winding frame can be manually adjusted during the winding process.
9.Intelligently input the starting point and the width of the cable. Detailed Photos
Application
1.Electronic transformer coil
2.Relay coil
3.High voltage wrapped coil
4.Inductance coil (except ring inductance)
5.Shaded pole motor coil
6.Synchronous motor coil
7.Solenoid valve coil
SCOPE OF APPLICATION:
Company Profile
Founded in 1993, Grewin has provided cost-effective, high-quality manufacturing solutions to a variety of industries. Whether it is the production of high-frequency transformers winding, low-frequency transformers winding, inductors winding and other coils winding , or other vital components, our winding machines have been relied upon by countless manufacturers around the world.
Our Team with Customers

Certifications

Packaging & Shipping

After Sales Service
PRE-SALE:
1. Strong and professional team of engineers, rich experience
2. Able to provide innovative solutions and quotes in one day
IN SALE:
1. Delivery time: 5-10 days(standard machine), 30 days(custom )
2. Free consulting service: in-depth understanding of customer needs
3. Provide professional advice: including the choice of parts type and consumable parts of the machine.
AFTER-SALE:
1.24 hours free remote service: video guide and telephone
2. Warranty:1 year after-sales service

---
