20FT 40FT Diesel and Petrol Fuel Station Container Gas Station Container

US$6,000.00-39,000.00 1 unit (MOQ)

Basic Info.

Model NO.
SD-MFS-1C-10
Customized
Standard
Certification
ISO9001
Tank Marerial
Metal Tank
Type
Tank with Dispener
Storage Objects
Liquid, Fuel, Diesel, Gasoline
Product Name
Mobile Fuel Station
Color
Customer′s Request
Material
Carbon Steel
Tank Shape
Cylindrical
Feature
Safe and Economic
Warranty of Core Components
1 Year
Frame Shape
Rectangular
Video Outgoing-Inspection
Provided
Applicable Industries
Energy & Mining, Other, Transportation
Core Components
Pump, Tank, Dispenser
Key Selling Points
Easy to Operate
Capacity
5-60 Cbm
Medium
Diesel or Gasoline
Option
Generator
Application
Fuel Refueling
Transport Package
Nude Packing, or by Container
Specification
5, 000 liters -100, 000 liters
Trademark
Shengding
Origin
Shandong, China
Production Capacity
20 Units Per Month

Product Description

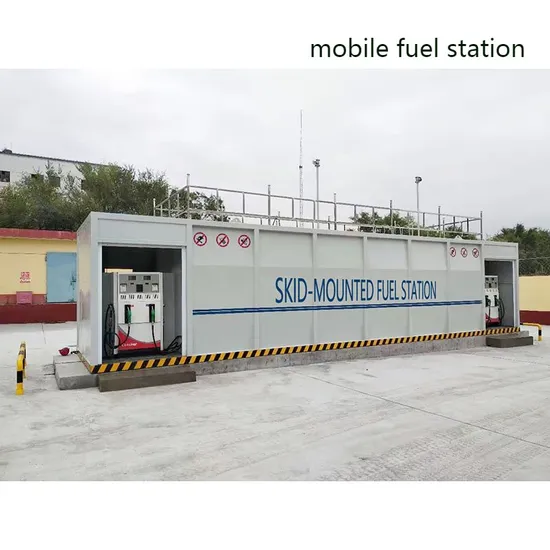

SHENGDING MOBILE FUEL STATION
https://shengdingmetal.en.made-in-china.com/product-list-1.html Product Parameters

S. No Description of configuration Specification
1 Explosion-proof storage tank Total volume 5m3-40m3.
Tank steel Q235, submerged arc automatic welding process.
2 Lightning and static protection set With electrostatic grounding device
3 Explosion proof materials V-type explosion-proof material
4 Fuel dispenser Dispenser equipped with pump and filling gun
5 Fuel loading system Explosion proof fuel pump with flow rate of 38m3 / h
7 Liquid level measurement system Measuring range 0.5-3m, measuring error ± 1mm, with LCD, temperature monitoring function, high liquid level alarm and low liquid
level alarm.
8 Airtight loading system DN80 self-sealing ring valve is adopted for quick connection of oil loading port.
9 Discharging system DN40 oil outlet pipe, equipped with maintenance protection device.
10 Emergency cut-off device DN40 emergency cut-off valve, normally closed, automatically cut off oil in case of fire or emergency.
11 Painting The equipment is polished, derusted and degreased.
With external three coats of painting: 80 micron epoxy zinc rich primer, epoxy micaceous iron midcoat, polyurethane cooling and
fireproof finish.
12 Other configuration Anti-static system
Oil leakage detection device
Manual oil measuring system
Automatic fire extinguishing system
Emergency pressure relief device
Power supply system
Anti-overflow system
Lighting
Filter unit
Cleaning device
Safety auxiliary facilities
Door
Function and Application Mobile fuel station is for the distribution of diesel and gasoline with tanks of variable capacity. It is composed of a container, divided into two main compartments, compartment for fuel tanks and compartment for pump and dispenser, and also provided with optional generator. Technical Features --- Fuel tanks of variable capacity, for diesel or petrol, also with option both diesel and petrol in one station.
--- Explosion-proof type to ensure safety.
--- Fuel loading system to load from fuel tank truck.
--- Top lockable hatches to get access to the manholes of tanks and refuel from above.
--- Separate compartment for generator or other equipment, complete with lockable door.
--- Leak detector systems and alarms (in case of double skin tanks).
--- Electric switchboard in the generator compartment.
--- Fuel level indicator
--- Emergency cut-off
--- Static grounding
--- Stainless filters
--- Lighting system
--- Optional generator to supply electricity power Main Accessories Packing & Shipping Our Service Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory. * More than 95% of the timely response rate, timely response to customer questions After-Sales Service
* Training how to install the tank, training how to use the filling station. * Engineers available to service equipment overseas.
* Use online contact methods such as skype whatsapp wechat to provide online services to customers. Certifications
