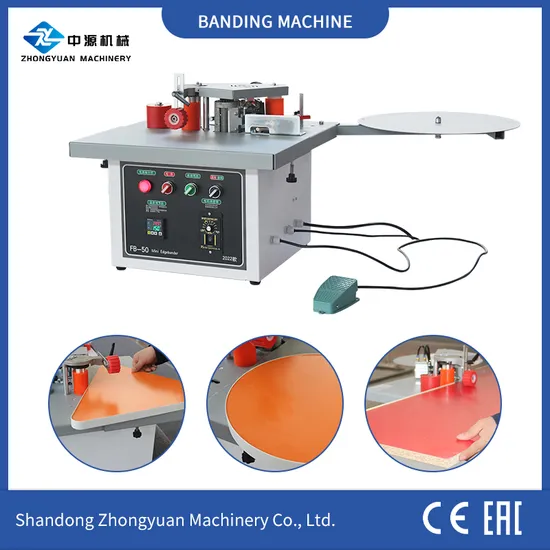

Edge Bander Chines Factory Price Mini Edge Banding Machine Home Using Portable Edge Bander

US$184.00 5 Sets (MOQ)

Basic Info.

Model NO.
mini
Type
Mini Edge Banding Machine
Automatic
Semi-Automatic
Certification
CE, ISO
Name
Mini Edge Banding Machine
Model
Mini
Supply Voltage
220V/50Hz
Total Power
1.2kw
Weight
25kg
Width of Edge
10-60mm
Air Pressure
0.3-0.6MPa
Standard Size
500*500*450mm
Transport Package
Wooden Box
Specification
500*500*450mm
Origin
China
Production Capacity
100sets/Month

Packaging & Delivery

Package Size
50.00cm * 50.00cm * 45.00cm
Package Gross Weight
25.000kg

Product Description

Product Parameters
Mini Edge Banding Machine:
1.Flexible conversion between straight and straight, the two operation modes do not interfere with each other, preventing misoperation, fast and convenient.
2.Double-sided gluing device, when sealing straight boards, double gluing ensures strong edge sealing.
3.Micro switch control, travel switch, automatic tape feeding and breaking when sealing straight line.
4.Foot control, when winding the curved plate, the tape will be fed or broken.
5.Countertop widening: The countertop is extended by about 14cm after being pulled out.
6.The edge banding strip limiter can adjust the height to prevent the edge banding strip from moving up and down.
7.Pressing plate device, smooth edge sealing, one-time molding.
8.High-quality cutter, cutting thickness 0.3-2mm, controlled by cylinder, fast cutting without burrs.
9.Large-capacity glue pot, intelligent temperature control, no glue leakage, circulating heating.
Model
mini
Voltage
220V/50HZ
Total power
1KW
Weight
25kg
Width of edge
10-60mm
Air pressure
0.3-06Mpa
Standard size
500*500*450mm

Detailed Photos
Product Application
Company Profile
Certifications

FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.
Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.
Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.
Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.
