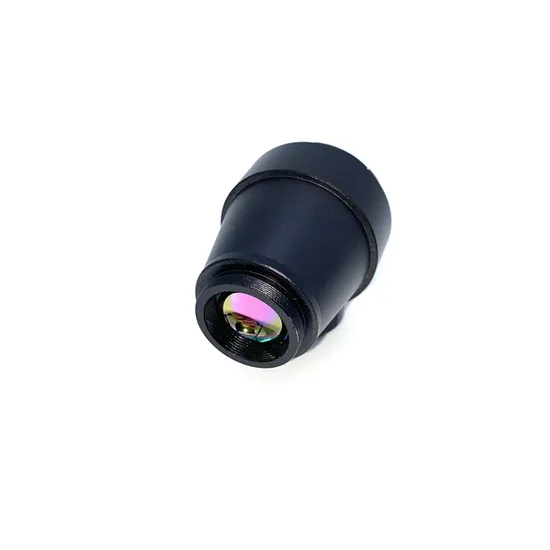

Factory Original Customized Focal Length 35mm F/1.0 Lwir Athermal Infrared Optical Lens Germanium Zns Znse Optics Lens for Thermal Imaging Cameras

US$366.00
1-49 Pieces
US$355.00
50-99 Pieces
US$334.00
100-299 Pieces
US$317.00
300+ Pieces

Basic Info.

Model NO.
RSA35F1.0-640-12
Transmittance
90%-95%
Shape
Single-lens
Material
Optical Glass
Lenses Color
Clear
Certification
RoHS, ISO9001
Customized
Customized
Coating
Dlc HD Ar
Focal Length
35mm
F#
1.0
Detector
640X512-12um
Dimensions
44mm / 44.8mm
Weight
88g
External Coating
Ar Coating Available
OEM
Yes
ODM
Yes
Transport Package
150mm*150mm*150mm
Origin
China
HS Code
9001909001
Production Capacity
1000/Year

Product Description

Product Parameters FL 35mm F#1.0 LWIR Athermal Lens Parameter:
Focal Length 35mm
F# 1.0
Detector 640x512-12um
Average Transmission >90%
Circular FOV (H)12.5°x(V)10°x(D)15.9°
Image Diagonal 9.83mm
Back Focus Distance 17.7mm
Back Working Distance 9.2mm
Back Focus Length 12.87mm
Dimensions 44mm / 44.8mm
Focus Range 1m to infinity
Mount Type M34x0.75-6g
Weight 88g
Operating Temperature -40ºC to +80ºC
Storage Temperature -40ºC to +80ºC
External Coating AR coating available
Factory Equipment
Package
Certifications
FAQ Q1: Can OEM or ODM be provided?
A: Yes, we provide customized services for customers. You need to provide us with some technical data, such as dimensions and markings.
Q2: Can items be printed with our own logo?
A: Yes, you only need to send us the source file of the logo.
Q3: Do you provide samples? Is it free or extra?
A: We will charge as little sample fee as possible, and sometimes we may even provide samples for free. However, you must pay us the courier fee by the following courier methods: DHL, TNT, UPS and FEDEX.
Q4: What if the item is broken?
A: Except for human error, we will replace the defect in a completely new way Within 7 days after you get our products.
Q5:What's your leadtime?
A:1 day for inventory and 25~35 days for the new project.
Q6:What's your shipping type? A:Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.
