Basic Info.
Model NO.
pipe arch curve machines india
Certification
CE, ISO, TUV
Transmission Method
Electric
Rolling Shaft
40cr, Tempering to Improve Hardness
Roller
Cr12, Chromed, Prevent Abrasionanti Corrosion
Controller
PLC, Auto Count Length and Quantity
Transport Package
Standard Export Package
Production Capacity
200set/Year
Product Description
Product Description

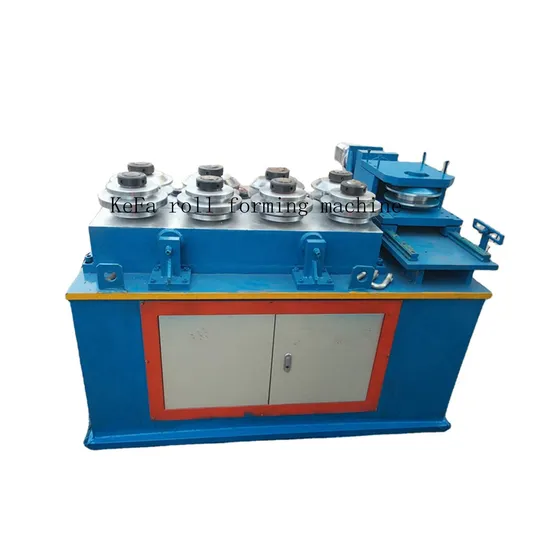

Greenhouse pipe Bending machine
| Machine Dimension | 1400mm×950mm×750mm |
| Power | 1.5kw |
| Number of forming rows | 5 rows |
| Spacing | 210mm |
| Depth | 23mm |
| Effective Width | 840mm |
| Sheet thickness | Below 1.0mm |
| Roll material of bending machine | 45# steel , hardness hr 55°- 57° |
| Weight | About 550Kg |
| Shaft diameter | ¢70 solid shaft |
| Rectifying deviation | Rubber shaft control at feeding port to prevent deviation |
| Bending arch | Adjustable as require |
Detailed Photos
Product Parameters
63*10 Ball Rolling Screw (Shangyin Taiwan), Metal Reverser
35*750 Linear Guideway (Upper Silver)
3.8KW MiG Servo Motor
Precision planetary gear reducer
5.5KW Horizontal Feed Motor
Steel plate welded box frame
6-mode high frequency quenched gear
Fully automatic arc bending program (self-developed according to arc length radius setting)
Error (+2cm) (special case)
Weight 1.7 tons
Equipment size 1.6*1.65*1.1m
Other product links
Company Profile
Certifications
Packaging & Shipping
FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
>>
