Chinese New Hb67V 67m Concrete Pump Truck for Hot Sale

US$280,000.00
1 Piece
US$277,000.00
2+ Pieces

Basic Info.

Type
Concrete Pump
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
180m²/h
Feeding Height
1380mm
Certification
ISO9001: 2000
Condition
New
Color
Customrized
Max. Vertical Conveying Distance
67m
Max. Horizontal Conveying Distance
59m
Weight
43870 Kg
Min. Turning Diameter
18.4m
Front Outrigger Transverse Span
7280mm
Hopper Volume
0.8m3
Hydraulic Oil Tank Volume
600L
Engine Power
132/1480kw/R/Min
Pipeline Diameter
125mm
Minimum Unfolding Height
11m
Transport Package
Nude
Specification
9625*2990*3100 mm
Trademark
ZOOMLION
Origin
Hunan, China

Product Description

Product Description

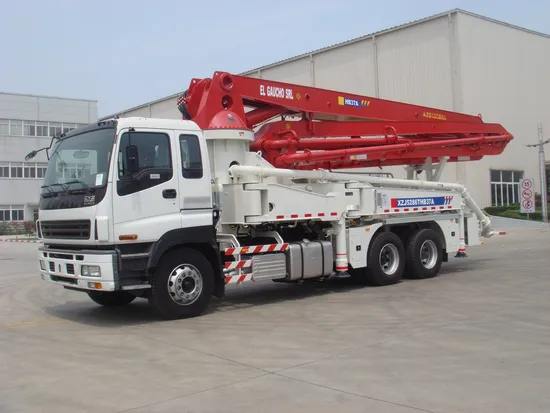

Mexico Hot Selling HB67V 67m Concrete Pump Truck with Good Price
Super safe
High-reliability design concept, advanced German manufacturing technology, 100% UT flaw detection inspection
Super reliable
Internationally patented technology of arc-shaped outriggers, C-AN valve intelligent boom technology
Ultra-low fuel consumption
Patented rock valve technology, and patented technology of casting oil passage valve body and large diameter slide valve ensure ultra-low fuel consumption
Detailed Photos
Product Parameters
Category
Item
Unit
HB67V
Overall
Outline dimension
mm
15815×2550×4000
Overall weight
kg
52000
Brand
/
Be*nz
Chassis
Model
/
AROCS4143
Wheelbase
mm
2050+4300+1350
Max.power
kW
315
Engine
Emission
/
according to your requirement
Theoretical
m³/h
180
Pumping system
Concrete pumping pressure
Mpa
10.2
Theoretical pumping times
Times/min
22~24
Delivery cylinder diameter × stroke
mm
φ260×2200
Placing boom
Reach height
m
66.1
Reach depth
m
43.6
Slewing radius
m
59.9
Slewing angle
°
±270
