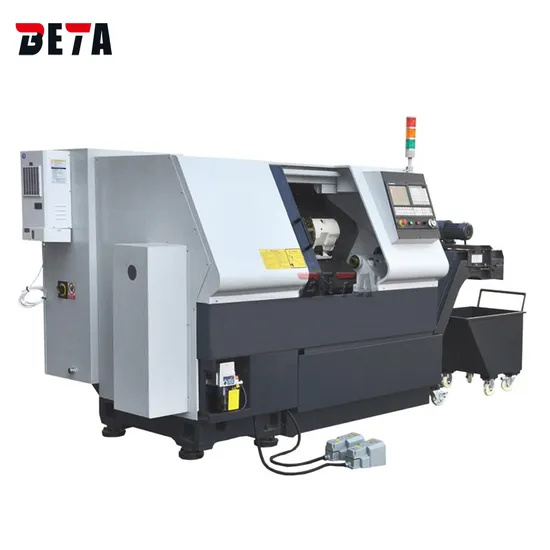

Precision Metal Turning 4 Axis CNC Metal Lathe Milling Machine

Product Description

Precision Metal Turning 4 Axis CNC Metal Lathe Milling Machine
Standard accessories:
FANUC CNC controller (with C axis)
FANUC servo motors for X/Y/Z axis
Servo main motor
Live turret motor
12-station live turret (with Y axis)
Living head 90°x 1 pc
Living head 0°x 1 pc
Inner hole tool holder x 2 pcs
Outer circle tool holder x 2 pcs
End face tool holder x 1 pcs
Taiwan hollow hydraulic 3-jaw chuck
Hydraulic tailstock
Taiwan HIWIN linear guides ways and ball screws
Japan SUNTER hydraulic direct clamp
Lubrication and coolant system
Air condition for electrical cabinet
SIEMENS/SCHNEIDER main electric elements
Automatic bar feeder
Full cover
Auto chip conveyor system
Working light
Tool box
Features:
1.The machine adopts CNC system with function and high reliability. The machine design adopts mechanical, electronic and hydraulic integration method with a compact structure.
2.Flat bed with slant slide structure, with high rigidity and fluent chip removal.
3.X and Z axis adopt precision linear guides with no backlash to result high rigidity and accuracy.
4.The spindle component is of high rigidity construction to provide variable speed to realize constant linear speed cutting and high speed cutting.
5.Automatic centralized lubrication with full sufficiency and reliability.
6.Full protection design, beautiful appearance and convenient operation and maintenance.

ITEMS	BT-25CY
MACHINING
Max. swing over bed	Ф500mm
Max. Processing diameter	Ф260mm
Max. Turning length	Ф220mm
SPINDLE
Spindle bore	Ф62mm
Spindle nose	Ф170mm No taper
Spindle speed	3000 rpm
TRAVEL
Max. travel of Axis X	180mm
Max. travel of Axis Y	±30mm
Max. travel of Axis Z	450mm
FEEDING
Rapid feed for Axis X	15m/min
Rapid feed for Axis Y	5m/min
Rapid feed for Axis Z	20m/min
TURRET
Tool post stations	12
Live tool servo motor power	.2.4kw
Live tool Max. speed	2000rpm
Outside dia. of cutting tool shank	20x20mm
Max. inner dia. of cutting tool shank	Ф25mm
TAILSTOCK
External diameter	Ф63mm
Max. travel of tailstock sleeve	115mm
Taper of tailstock sleeve	M.T. NO 4
OTHERS
Power of main motor	7.5/11kW
Bed structure	30° slant slide
Chuck dia.	8"
Overall dimensions (LxWxH)	2000x1700x1880mm
Net weight	3800kg

---
