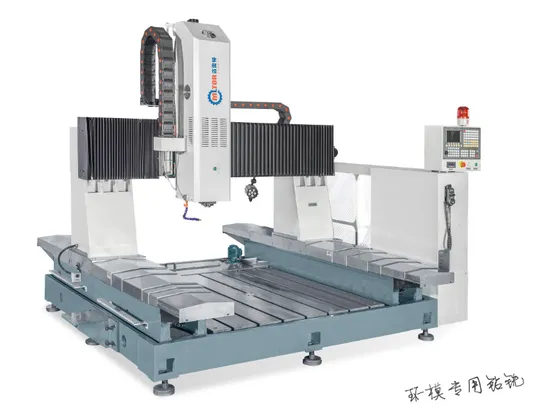

Drilling and Milling Groove on Flange Side of Ring-Die Flange Hole Keyway Milling Machine

US$7,900.00-89,999.00 1 Set (MOQ)

Basic Info.

Model NO.
MLT-FDM1515
Controlling Mode
CNC
Number of Shaft
3
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Host Weight
4680kg
Spindle Speed
0-3000r/Min
Spinlde Power
3.7kw
Transport Package
Nude Packing
Specification
3130*2850*2300
Trademark
MLTOR
Origin
China
Production Capacity
30sets/Year

Product Description

Product Description
MLT-FDM1515
1.Special design for the ring die process.2.High quality,economical use.3.Small body,large stroke and high rigidity.4.The integration processing of ring die hole and keyway installation.5.Only input the ring die parameter,installation hole number,keyway width and groove depth,the processing will be done automaticaly by the machine.6.Drilling and milling can be switch.7.Man-machine interface friendly,enter the processing parameter can be run.8.Milling slot,drilling high presicion,eliminating the need to draw lines of the process.9.Fully automatic drilling,milling groove,can be realized batch processing.
10.Work table with the overall casting,increasing machine load capacity.11.BT30 spindle with pneumatic cutting,and change the cutting tool easily and rapidly,high precision.12.Professional custom CNC system to ensure the reliability of the process,stability.13.Z-axis travel long,it can adapt to different thickness of the ring-dies processing needs.
Detailed Photos
Product Parameters
Number of control axis 3
Spindle travel range(X*Y) 1500*1500mm
Workbench space(L*W) 1500*1500mm
Axis Z travel range 550mm
Spindle Specifications BT30
Spindle speed 0-3000r/min
Scope of drilling Φ30mm
Tool change Pneumatic cutting
The clamping way Customized jig
Spindle power 3.7KW
Host Weight 4680kg
Floor space 3130*2850*2300mm
