Product Details
Product Description
Product Description

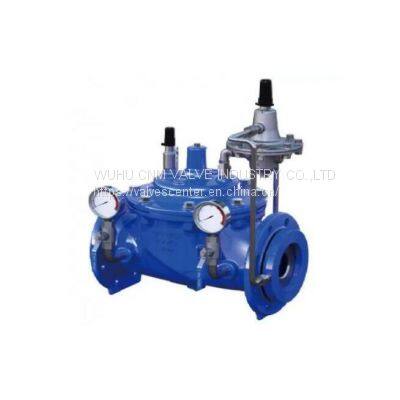

What is a Hydraulically Flow Control Valve?
The hydraulically flow control valve is a valve that adjusts the flow by changing the liquid resistance by changing the size of the valve port.
Features of Hydraulically Flow Control Valve:
CNM Flow Control Valve prevents excessive flow by limiting flow to a preselected maximum rate, regardless of changing line pressure.
It is a hydraulically operated, pilot controlled, diaphragm valve.
The pilot control responds to the differential pressure produced across an orifice plate installed downstream of the valve.
Accurate control is assured as very small changes in the controlling differential pressure produce immediate corrective action of the main valve.
Flow rate adjustments are made by turning an adjusting screw on the pilot control.
The hydraulically flow control valve includes an orifice plate with a holder that should be installed one to five pipe diameters downstream of the Valve.
To guarantee accurate control of flow rate, there are several orifice plate with different hole optional for each size, see the additional table for selection of orifice.
How to choose the Hydraulically Flow Control Valve?
It can be selected according to the pipe diameter.
It can be selected according to the maximum flow and the flow range of the valve.
Our company is one of the leading industrial valve manufacturers/suppliers. Our product range includes gate valve, globe valve, check valve, butterfly valve, plug valve, ball valve,strainer, steam trap, and etc., which are produced in line with JIS, ANSI / API6D, DIN, GOST, and GB standards.
Find Durable, efficient hydraulic flow control valves at CNM VALVE, please click here.
>>
