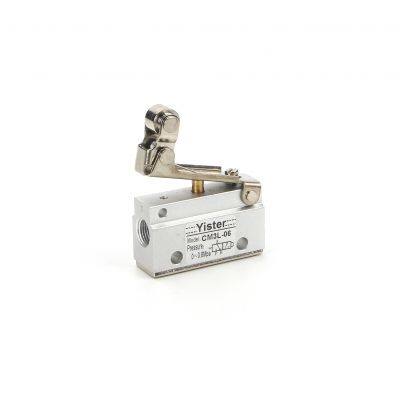

CM3L Series 3 Way/5Way Manual Valve CM3L-06 Mechanical valve

Product Details

Product Details

Product Description

Product Description
Product description:
Item No.
CM3□-05
CM3□-06
CM3□-08
Fluid
Air
Operation type
External control
Pressure range
0-1.0 Mpa
Proof pressure
1.5Mpa
Ambient and fluid temperature
-20 to 70℃
Valve type
3 port 2 position
Port size
M5*0.8
1/8”
1/4”
Orifize size
2.0mm2
2.5mm2
15.0mm2
Cv value
0.11
0.14
0.84

Feature
Airtac replacement CM3 manual mechanical valves are 3 way valves and are available with M5 ports 1/8 ports, or 1/4 ports.
A variety of manual and mechanical operators allow the CM3 series to be used as limit valves or to manually control circuit operation.
The non-threaded exhaust port allows the CM3 valves to be very compact in size. In addition to the wide range of manual actuators including large shrouded palm buttons.
Company information:
Yister Electric Co., Ltd. specialized in manufacturing pneumatic products. The company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
The company mainly produces and sells: PU air pipe, quick coupling, solenoid valve, foot valve, mechanical valve, buffer, sliding switch, water valve, floating joint, standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder, magnetic switch, air source treatment parts, double, triple, air filter, pressure regulating valve, pressure reducing valve, manifold.
FAQ
1. Q:How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
2.Q: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
3 Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
