Hot Sale Different Size Pure PTFE Extruded Rod

Negotiable 100 kg (MOQ)

Basic Info.

Water Absorption
<0.01%
Contraction Percentage
<0.4%
Tensile Strength
30~40MPa
Colour
White, Colorful
Filling
Graphite, Carbon, Bronze
Transport Package
Carton and Pallet
Specification
As customised
Trademark
Redsun
Origin
Beijing, China
HS Code
3916909000
Production Capacity
50 Tons/Month

Product Description

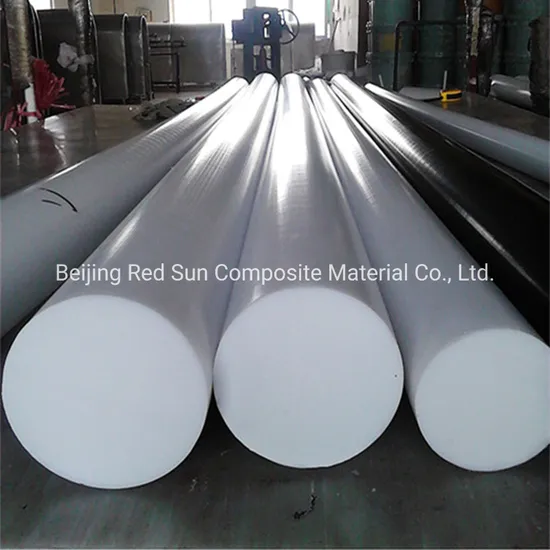

Hot Sale Different Size Pure PTFE Extruded Rod
1. The Specification of PTFE Rod
PTFE rod can be manufactured by three kinds of process. The rod can be made by paste extruded, plug extruded, and molded.
OD(mm) Length(mm) Length(mm)
1, 2, 3, 4 continuous length
5, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 28, 30, 32, 35, 40 1000 2000
45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 1000 2000
110, 120, 130, 140, 150, 160, 170, 180, 190, 200 1000 2000
210, 220, 230, 240, 250, 260, 270, 280, 300 300
310, 320, 330, 340, 350, 360, 370, 380, 390, 400, 410, 420, 440, 450, 460, 470, 480, 490, 500 100

2. Custom specifications of PTFE Rod
Item Dia.(mm) Length(mm)
Paste Extruded Rod 1~4 According to customer's request
Plug Extruded Rod 4~200 500~2000
Molded Rod 5~500 10~300

There are many specifications are in stock.The data is too much, it's not convenient to list here.
And special specifications can be customized.
If you have any confuse, please contact us. We will reply you as soon as possible.

3. Properties
ITEM Data Data Unit
Apparent density 2.10-2.30 g/ cm3
Tensile Strength ≥20 Mpa
Elongation at break ≥200 %
Working Temp -180~260 ºC
Melting point 330 ºC
Produce Max.Temp 390 ºC
Compressive strength 1% deformation 400-500 %
Hardness 50-60 shoreD

4. Packing and Delivery
Shiping way: By sea, By air or By express according your choice.
We try our best to pack and protect the goods according to custome's requirment base on different
sizes, hardness and other details.
5. Our Service
Your inquiry related to our products or prices will be replied within 24hours.
Experienced staffs to answer all your enquires in fluent English with professional knowledge.
What we supplied for you is not only the products but also the best service and confidence.
Protection of all your private business information.
One time cooperation, long time partners.
In case of any quality problem, we will firstly compenstate customer and not let the customer has any lost.
We will provide you any update news about your order status.
