PP Sheet Production Machinery China PP Sheet Machine PP Sheet Extruder Machine

Product Description

PP Sheet Production Machinery China pp sheet machine PP sheet extruder machine
This production line is used for PP PC hollow grid board, this board is widely used in construction, decoration, packing, advertise.
Extruder:
The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
Screen changer:
Quick screen changer of hydraulic system ensures the short course of screen changing. Double-position combined with special sealing structure guarantee stable operation of screen changer.
Mould:
Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.
Three roller calendar
Tractor:
There are two tractors. The first one is of high powr, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal. The second one is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.
Stress remover:
The advanced large area conductive heating mode can effectively remove the stress of plate and further improve planeness of the plate.
Cutting machine:
Accurate instant length-fixed cutting and automatic up-down discharging system combined with alloy steel sharp blade realize high quality of cutting

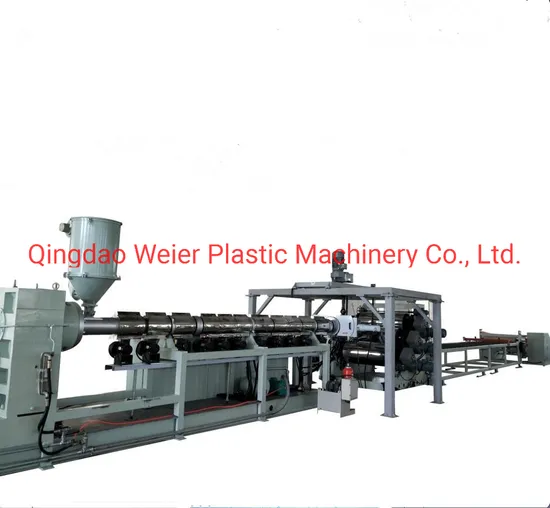

Machine pictures below:
Hollow grid pp sheet making machine can be used to produce PC, PP, PE hollowness grid boards.

The board is popularly used to buildings, decoration, advertisement ornament, sound insulation on road and packaging.

The PP hollowness board can replace the paper packaging canton with the advantages of light weight, high strength, damp-proofing and corrosion-resistance.

Main technical specification
Extruder Model	φ135/38,φ50/30	φ110/38,φ45/30
Products width	2100mm	1300mm
Products thickness	2-10mm	2-10mm
Main motor power	185kw/22kw	132kw/22kw
Designed capacity	450-550kg/h	250-350kg/h

We have many type machine in stock for checking;
Please visit us & Contact Emily 86 157 6396 5159

---
