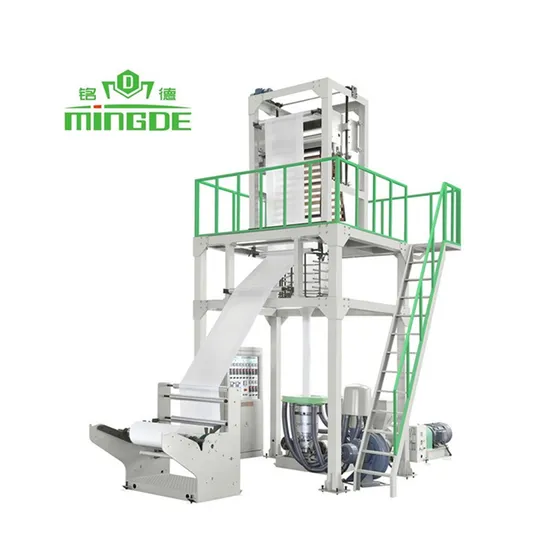

Three Layer Film Blowing Machine Film Extruder Machinery

Product Description

Product Description

Model	MD-ABA45H	MD-ABA50	MD-ABA50/55	MD-ABA55	MD-ABA65
Suitable Material	HDPE	HDPE	HDPE	HDPE	HDPE
Max Film Width(mm)	800	800	1000	1200	1500
Film Thickness(mm)	HD:0.008-0.08	HD:0.008-0.08	HD:0.008-0.08	HD:0.008-0.08	HD:0.008-0.08
Max Extrusion OutputHD	100kg/hr	80kg/hr	80kg/hr	120kg/hr	150kg/hr
Gear Box	146*2	173*2	173/180	180*2	200*2
Screw Diameter(mm)	φ45x2	φ50x2	φ50/55	φ55x2	φ65x2
Screw's Material	38 CRMOALA Alloy	38 CRMOALA Alloy	38 CRMOALA Alloy	38 CRMOALA Alloy	38 CRMOALA Alloy
Barrel's Material	38 CRMOALA	38 CRMOALA	38 CRMOALA	38 CRMOALA	38 CRMOALA
Barrel's Cooling Fan	200Wx3x2	200Wx3x2	200Wx3x2	200Wx3x2	200Wx4x2
Thermo Control (zone)	3x2	3x2	3x2	3x2	4x2
Driving Motor (kw)	15*2	18.5*2	18.5/22	22*2	30*2
Die Size (mm)	HD:80/100	HD:80/100	HD:φ100/120	HD:φ120/150	HD:φ200/220
Screen Changer	Standard manual	Standard manual	Standard manual	Standard manual	Standard manual
Thermo Control(zone)	3	3	3	3	3
Air Ring	φ820mm Dual Air Ring	φ820mm Dual Air Ring	φ820mm Dual Air Ring	φ820mm Dual Air Ring	φ820mm Dual Air Ring
Cooling Blower(kw)	5.5	5.5	5.5	5.5	7.5
Center Steady Stick	1 PCS	1 PCS	1 PCS	1 PCS	1 PCS
Roller Width (mm)	φ138x850	φ138x850	φ138x1100	φ138x1300	φ165x1600
Embossing Roller Width	750mm	750mm	950mm	1200mm	NO
Take-UP Motor (kw)	1.1	1.1	1.1	1.5	1.5
Take-UP Speed(M/min)	10-80	10-80	10-80	10-60	10-60
Height adjustable type	700mm	700mm	700mm	700mm	700mm
Type of Winder	Surface Friction Winder	Surface Friction Winder	Surface Friction Winder	Surface Friction Winder	Surface Friction Winder
Roller Width (mm)	900	900	1000	1300	1600
Winding Motor(KW)	1.5	1.5	1.5	1.5	1.5
Winding Speed(M/min)	10-80	10-80	10-80	10-60	10-60
Voltage	380V 50HZ, 3PHASE	380V 50HZ, 3PHASE	380V 50HZ, 3PHASE	380V 50HZ, 3PHASE	380V 50HZ, 3PHASE
Cover Dimensins(m)	6.2x2.75x5.2	6.2x2.75x5.2	6.5x3x5.2	6.5x3.2x5.5	7x3.2x6.5

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
Our Advantages
After Sales Service
Our company will provide you the good after services. We can help you solve the problem through video, email, phone, 24 hours hot line. If needed, we can also let our engineer go to your country to solve the problem. We hope all the customers will be satisfied with our machines and services.
FAQ
1.Trade company or manufacture?
we are a manufacture of plastic machinery such as: film blowing machine, printing machine ,bag making machine and recycling machine.
2.How to visit our factory?
Some lines you can choose. First, you can come to guangzhou air port, then by air to wenzhou air port, call us we can go whenzhou air port to pick up you.
Second, you can to shanghai, then from shanghai air port to whenzhou air port or by the fast train Ruian station then we go air port or train station to pick up you.
3.What about the warranty?
All our machine have one year warranty. if the machine parts broken because the quality problem, we can provide the spares for you by free.
4.What about the traning?
We welcome you learn the machine use in our factory. before the machine finished you can come to our factory , we can arrange the enginner teach you the simple operation.
we also can send engineer to your factory ,teach your workers how to run the machine. but you need pay all the fees including: round tickets , food and living.
5.About the machine shipping?
Normal our machine send to customers by sea, port to port almost used. like FOB, CIF.
6.About the machine packing?
Our machine normal use the plastic packing. if you need wooden case packing and require fumigation, before order you need tell us so we arrange for you.

---
