US$17,200.00-18,500.00
|
1 Set
(MOQ)
|
Basic Info.
Speed
120~150PCS/ Minute(Cup); 90~110PCS/Min(Bowl)
Required Paper
Single and Double Side PE Coated Paper
After-sales Service
12 Month
Transport Package
Export Wooden Case Packing
Production Capacity
300PCS/Year
Product Description
Introduction:

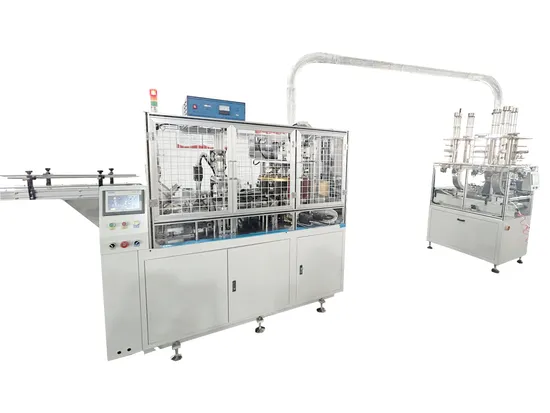

The biggest feature of the double-disc high-speed paper cup machine is that it is a single indexing structure equipment developed and designed by our company and South Korea. It thus optimizes the transmission structure, reasonably distributes each functional assembly to operate independently, reduces the wear and tear of the machine's large inertial movement, and adopts photoelectric full-process fault monitoring to improve equipment performance and achieve fast and stable operation. It realizes the automatic shutdown of faults, greatly reduces the labor intensity of workers, and improves the safety and stability of the equipment. By simplifying the paper cup process, the automatic counting of paper feeding, gluing, and unloading cups is completed by a turntable, which is most suitable for forming paper cups. .
advantage:
1. The design adopts open cylindrical cam indexing positioning, which has a large inertia against the movement of the turntable.
2. The mechanical moving parts adopt automatic oiling and lubrication system.
3. Optical eye tracking fault shutdown monitoring system throughout the cup making process.
4. The design adopts Swiss leister heater. Send the bottom of the cup to the mold body for heating first, and then send the bottom of the cup to improve the heating effect and ensure the quality of knurling.
Product Made from Machine:
Main Technical Parameters:
| Model | LB-150S |
| Paper Cup Specifications | 2-9OZ |
| Paper Cup Material | 150-350g/m2 |
| Production Speed | 120-150pcs/min |
| Power Supply | 220V/380V 50Hz |
| Total Power | 15KW |
| Gas Source | 0.5-0.8m3/min |
| Machine Weight | 2200KGS |
| Overall Dimension ((L*W*H)) | 1800X1060X1900mm |
Machine Detailed Pic for Reference:
Packing and Loading of Container:
>>
