US$10,000.00-14,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Variable Speed
Variable Speed
After-sales Service
18 Month
Transport Package
No Packing
Origin
Linyi, Shandong, China
Production Capacity
1000/Year
Product Description

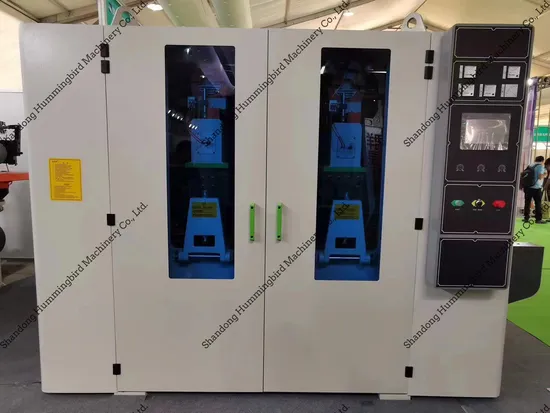

sanding machine tool performs fixed-thickness sanding, fine sanding and polishingtreatments on plywood, wood core board, density board, veneer, secondaryprocessed coating board, etc., to obtain an ideal surface.
Product Parameters
| MODEL | H27R |
| working width | 40-1300mm |
| Working thickness | 2.5-80mm |
| Sorking lenth | >780mm |
| Operation panel | Buttor touch panel |
| Voltage | 380V 50Hz |
| Totel motors power | 64.35kw |
| Main moiors power | 55kw(75kw) |
| Reduoar motor powrer | 7.5kw(11kw) |
| Lifting motor power | 0.75kw |
| Feeding table vacuum ( Selective ) | 5.5kw |
| Brushing metor power | 1.1kw |
| Feeding speed | 20-40m'min |
| WVorking air pressure | 0.6MPa |
| Consumplion of conpressed air | 0.2m³/min |
| Volume of dust collection | 11000m³/h |
| Size(L x Wx H) | 2790*3100*2480mm |
| Weight | 7500kgs |
| Working widith | 40-1300mm |
| Working thickness | 2.5-80mm |
| Sorking lenth | >780mm |
| Operation panel | Buttor touch panel |
| Voltage | 380V 50Hz |
| Tolal moiors pewver | 109.35kw |
| Main motors power | 55kw,45kw(75kw,55kw) |
| Reducer motor power | 7.5kw(11kw ) |
| Lifting motor power | 0.75kw |
| Feeding table vacuum ( Selective ) | 5.5kw |
| Brushing moter powwer | 1.1kw |
| Feeding speed | 20-40mimin |
| working air presure | 0.6MPa |
| Consumplion of conpressed air | 0.2m/min |
| Volume of dust collection | 18000m3h |
| Size(LxWxH) | 3400*3100*2480mm |
| Weight | 10000kgS |
After Sales Service
Pre-sale service1.Provide the free consultation of equipment
2.Provide the standard device and the flow chart
3.According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4.Welcome to visit our factoryService during the sales1. Inspect the machine before leaving the factory
2.Oversea install and debug the equipment
3. Train the first-line operatorAfter sales service1. 24 hours online service
2. Provide the VIDEO with install and debug the equipment
3. Provide technical exchanging
Our Advantages
1.lasering your logo on products and designing logo is free2.Delivery time within 30days3.No else charge4.MOQ≥15.Provide products quotation6.Provide Packaging customization service7.SupportWechat/Email/whatsapp/8.We specializein this field for 25 years9.Excellent after-sale system10.Supporting visits to factory
FAQ
1.Q: Factory or distributor?A: We are A manufacturer of wood-based panel machinery. Our products are manufactured by our own manufacturers and technical experts.2. Q: Quality control?A: Each machine is tested three times before delivery.3. Q: Lead time?A: 30-40 days after receiving the deposit.4. Q: Factory layout design?A: We have A team of engineers making floor plans for customers for free.5. Q: After-sales service?A: We have technicians to help customers with the installation.6. Q: Warranty?It's a one-year warranty, and we always provide parts and service.7. Q: Terms of payment?T/T or L/C will do.8. Q: behind MOQ?A: The moQ is 1 set.
>>
