ASTM D2794 Coating Impact Tester

Product Description

Product Description
Product Description

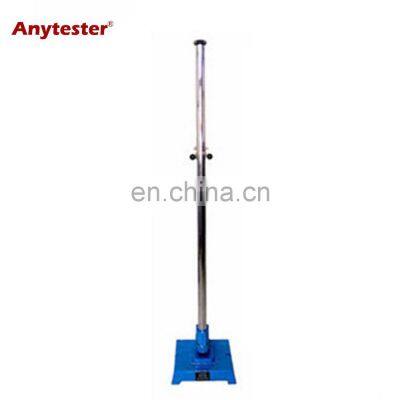

QCJ-120B Coating Impact Tester is used to determine the impact resistance, deformability and elongation of coatings and substrates as well as adhesion of the coating. This machine conforms to ASTM D2794, etc..
Features
1. It consists of a solid base stand with a guide tube support
2. Easy and safe to operate
Specification
Model
QCJ-120B
Coating Impact Tester
Falling height
120±0.2cm
Division value
1cm
Falling weight
2000±2g
Impact head
SΦ16mm
Die inside
Φ16.3mm
Radius of curvature
R2.5-3mm
Impact depth of impact head
2.5±0.1mm
