US$2,000.00-3,100.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Reproduction Apparatus
Certification
ISO9001:2008
Syringe
Disposable Sterile Syringe
Blood Sampling Needle
Disposable Vacuum Blood Sampling
Breathing Pattern
Auto-Control
Animal Anesthesia Machine Control Method
Pneumatic
Transport Package
by Air or by Sea
Specification
45*23*38 0.039
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
20.000kg
Product Description

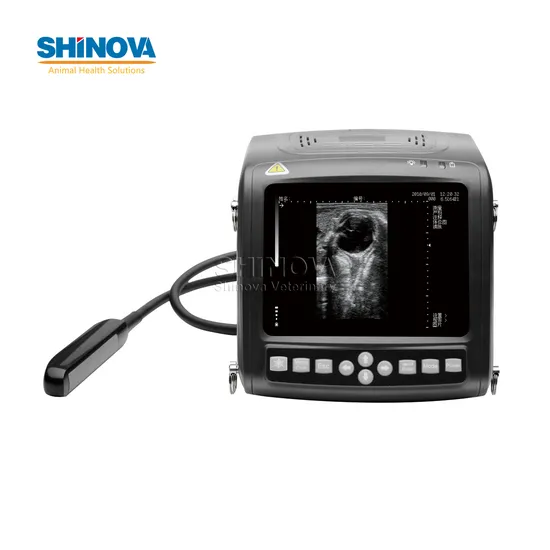

Wrist Veterinary Ultrasound
MODEL :SonoScan W1
Product Description
Descriptions:
1)1.1kg ( 2.4 lbs) 2)Rechargeable Battery Life of 200 minutes 3)5.7" LCD Display 4)100 images built-in storage 5)Freeze image switch with free hand 6)256 Frames Cine 7)USB Port for Flash Card Memory 8)8 Stages of Magnification 9)Concise Menu for Operation 10)Good Brightness for Outdoor Scanning 11)Wrist Mount and Belt-hanger( for holding probes)Available
Product Parameters
Specifications: 1. Technology: All-digital imaging technology, full digital beam forming, excellent image quality with high resolution and high penetration.
2. Scanning methods: Electronic convex/electronic linear/electronic micro-convex.
3. Scanning technology: Real-time dynamic imaging, harmonic imaging.
4. Probe: Multi-frequency probe series.
5. No. Of probe connectors: 1.
6. Monitor: 5.7high resolution non-interlaced SVGA display.
7. Keyboard: Ergonomic keyboard.
8. Gray scale: 256 levels.
9. Display modes: B, B/B, B/M, M, or 4B.
10. Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s and 8s.
11. Magnification: *0.8, *1.0, *1.2, *1.5, *1.6, *2.0, *2.4 and*3.0.
12. Focusing methods: Single-poin, multi-stage transmitting, dynamic focusing
13. CINE loop: 256-frame.
14. Zoom: Intelligent local zoom in real-time and frozen mode.
15. Image storage and transfter: Built-in 100-frame image storage, USB Image transfer, Ultrasound working station.
16. Image Processing: Depth enhancement/pan function, Left/right, positive/negative, vertical, horizontal flip and B/W conversion, Angle change, Image freeze/unfreeze, Gamma correction, EDGE enhancement for image after-processing, gray transformation, gray rejection etc, Frame correlation function, Adjustment and display of near field, far field, total gain and dynamic range, Pre-processing: IP selection, dynamic range, EDGE enhancement, smooth, frame averaging, scanning angle selection, line density selection etc.
17. Measurements: B mode: Distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile etc, M mode: Distance, time, velocity, heart rate etc, General software packages for Abdomen, OB/GYN, Small parts, Urology, Cardiology etc, Obstetric package including 10 tables, automatic calculation of EDD, BPD, GS, CRL, FL, HC, AD, AC, GA, FW and fetus weight, 4 veterinary body marks.
18. Report: Obstetric report.
19. Documentation: Full screen documentation, hospital name, Patient name, date/time.
20. Power Supply: AC 100-240V~, 50-60Hz.
21. Power consumption: ≤ 40VA. 22. Others: 8 kinds Pseudo-color, Energy-saving, PAL-NTSC switchable.
Company Profile
About Us
SHINOVA, incorporated in October 2005, is a professional veterinary equipment manufacturer and veterinary solutions provider primarily for animal hospitals and clinics.
With leading research, design, operation and service capabilities, Shinova devotes ourselves to providing advanced veterinary techniques for veterinarians to solve all the diagnostic and treatment difficulties of animal care.
>>
