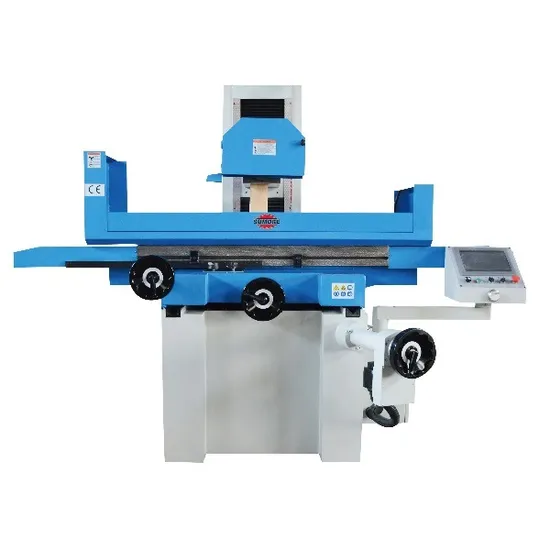

High Performance Surface Wheel Sumore 305*1020 Table Size Price Grinding Machine Grinder

Product Description

Product Description
Precision Surface Grinding Machine Price / Surface Grinder Machine SP2514/SGA high precision magnetic chuck available manual surface grinder grinding machine Small manual surface grinder machine surface grinding machine SP2508 Factory vertical surface grinders surface grinding machine manufacturers metal hydraulic surface grinder machine belongs to most popular economic manualsurface grinder machine. It is small in size and delicate in design. This surface grinder machine is made in China, but with same quality of Japan surface grinder. The main features are as below
Adopt the exceeding precise class7 (P4 level) ball bearing for spindle. Surface Grinder(hydrulic grinding machine) is a good quality metal surface grinding machine, which is made in China, but have similar quality as Japan surface grinder. It has good design and high quality.
Quick details
1.Table size:406*813mm
2.Magnetic chuck size:4008800mm
3.Grinding wheel size:350*40*127mm
4.Spindle motor:4/5.5KW
Featurs/Advantages
High rigidity & high sealing ensure no vibration- Accuracy
Digital size controller -Longer machining Accuracy
Simple operation
Suit for fine Grinding, Lapping and Polishing etc
Table size 600X300 economic
High quality and reasonable prices
Could work with many different material
COLOR AND BRAND could be custimized
Pre, main and post load position can be controlled by simple setting.
Operator gets more space for loading from upper wheel Swivel device. It can be equiped with semi or full automatic Loading or Unloading device.

MODEL		Unit	SP2514/SGA
Table size(W x L)		mm	406x813
Max longitudinal travel		mm	910
Max cross travel		mm	450
Max distance from spindle center to table		mm	580
Electro magnetic chuck size		mm	400x800
Speed of table longitudinal movement		m/min	7-23
Table Transverse movement	Auto feed	mm/min	0.1-8
	Rapid speed	mm/min	990
	Feed of handwheel	Mm/div	0.02
Wheelhead Vertical movement	Auto feed	mm	0.005/0.01/0.02/0.03/0.04/0.05(Only for AHD model)
	Rapid speed	Mm/min	460( Only for AHR/AHD model)
	Feed of handwheel	Mm/div	0.005
Grinding wheel	speed	rpm	1450(50Hz) 1750(60Hz)
	size	mm	350x40x127
Spindle motor		kw	5.5
Hydraulic motor		kw	2.2
Cooling pump motor		kw	0.125
Elevating motor		kw	0.25(AHR mode) 0.5(AHD modle, servo motor)
Cross feed motor		kw	0.04
Max loading capacity of table		KG	500
Total rated power		kw	9
Height of machine		mm	1890
Floor space(LxW)		mm	3600x2400
Gross weight		kg	3500
Package dimensions (L x W x H)		mm	2850x2270x2180

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
