Welcome to visit

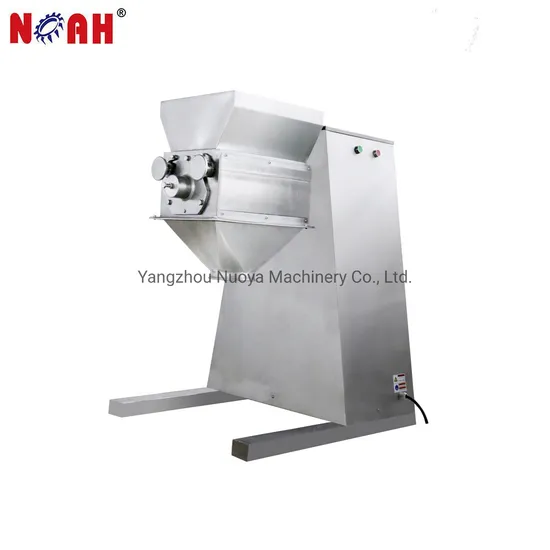

Yk-160 Pharmaceutical Equipment Granulation Machine

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
Yk-160
Size
Medium
Certification
GS, CE, ISO 9001
Condition
New
Brand Name
Noah
Model
Yk
Rotor Speed(R/Min)
50
Product Name
Yk Granulator
Transport Package
Wood Package or Plywood Package
Specification
ISO9001, CE
Trademark
NOAH
Origin
China
Production Capacity
600sets/Year

Product Description

Yk-160 Pharmaceutical Equipment Granulation Machine Applications:
The Scilating Granulator is used for forming the required granules from moist power material,or for crushing dried block stock into granulates in required size.
Features:
The rotary speed of the rotor can be adjusted during operation and the sieve can be removed and remounted easily; its tension also can be adjustable.
The driving mechanism is totally enclosed in the machine body and its lubrication system improves the lifetime of the mechanical components.
Main technical specifications:
Type YK60 YK90 YK160
Dia. of rotor(mm) 60 90 160
Effective length of rotor(mm) 184 290 360
Rotor speed(r/min) 50
Production capacity(kg/h) 20-25 40-50 300-700
Rated motor(kw) 0.37 0.37 2.2
Overall size(mm) 530*400*530 700*400*780 910*700*1200
Net weight(kg) 70 100 280
