10bbl 12bbl 15bbl 20bbl SUS 304 306 Beer Plant with CIP Cleaning for Craft Brewery Nano or Microbreweries

Product Description

ModularityOur concept of modularity allows the brewery to have a brewhouse that is always adequate for the real production need.

BREWHOUSE	Mash Tun	Lauter Tun	Boil Kettle	Whirlpool Tank	Hot Liquor Tank
2-vessel	multifunctional tank		multifunctional tank		√
	multifunctional			tank	√
3-vessel	multifunctional tank		√	√	√
	√	√	multifunctional tank		√
	multifunctional	√	tank	√	√
4-vessel	√	√	√	√	√

MULTIFUNCTIONAL TANK for the realization of two or more processes in one vessel

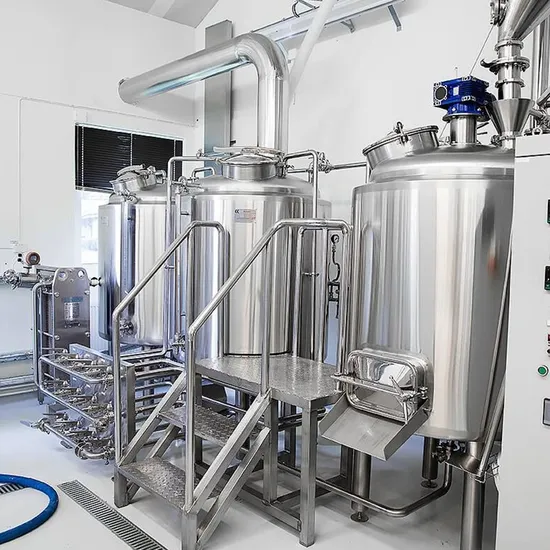

Tiantai 2-vessel Brewhouse

Our 2-vessel is intended for a multitude of applications, whilst maximizing the use of space through higher specification design and flexibility when compared with the other two vessel options. The smaller batch size makes 2-vessel brewhouse perfect for a brewery, taps, brewpub, or as a pilot plant for larger production operations. Our focus on aesthetics mixes form and function, making the system perfect for any retail environment.
Heating Option
We have a range of kettle heating options including electric, direct fire, or steam, depending on the site and local utility costs and the scope of your project.
*Electric - Available on 200L to 3000L.
*Direct Fire - Available on 500L, 800L, 1000L and 1500L.
*Steam - Available on 500L to 15000L.
Sanitary
*All systems and vessels are CIP designed for ease of cleaning.
*Check valve and air filter for wort aeration system to prevent wort seepage into CO2 tube.
*All stainless-steel piping is purged welded.
*Suggested cleaning chemicals and procedures provided prior to system start-up.
Brewhouse Details
Fermentation System
Recommend Products
Solution Example

Modular	Configuration	Quantity
1. Malt Milling System	Mill Machine	1 unit
	Grist case	optional
	Flexible conveyor	optional
2. Brewhouse System	Mash tun	1 set
	Lauter tun
	Kettle tun
	Whirlpool tun
	Hot water tank	optional
	Cold water tank	optional
	Plate and frame heat exchanger	1 unit
	Accessories	1 set
3. Fermentation System	Fermentation tank	6 units
	Accessories	1 set
4. Cooling System	Glycol water tank	1 unit
	Chiller	2 units
	Accessories	1 set
5. CIP System	Acid tank	1 unit
	Caustic tank	1 unit
	Sanitizer tank	1 unit
	Accessories of the CIP System	1 set
6. Control System	Automatic/Semi-auto/Manual: PID/PLC control	1 set
7. Filtering System	Bright beer tank	optional
	Candle-type diatomite filter/Membrane filter/Bag filter	optional
8. Filling System	Glass bottle line	optional
	Canning line	optional
	Keg system	optional
