Product Details
Product Description
Product Description
Items
| Descriptions
| Specifications and Types
|
General
| Truck Name
| Dongfeng RHD 6ton-8ton refrigerated truck
|
Drive Type
| 4*2
|
Payload (kg)
| 2900
|
Seating person
| 2-3
|
GVW (kg)
| 7490
|
Curb Weight (kg)
| 4395
|
Overall Dimensions (L*W*H) (mm)
| 6995×2285×3250
|
Insulation van dimension(L*W*H)(mm)
| 5120×2050×2100
|
Driver cab
| Dongfeng duolika single row driver cab
|
Engine
| Engine Model
| B140 33/CY4102-E3C
|
Engine Brand
| Dongfeng Cummins/Chaochai
|
Fuel Type
| Diesel
|
Max output (hp/rpm)
| 140hp/103KW; 120hp/88KW
|
Emission Standard
| Euro Ⅲ
|
Capacity (cc)
| 3900; 3856
|
Engine type
| 4 cylinders, inter-cooling diesel engine
|
Chassis
| Chassis Brand
| Dongfeng
|
Tire Specification
| 7.50R16
|
Wheelbase (mm)
| 3800
|
Axle No.
| 2
|
Front/Rear axle
| 2.4ton front axle/5ton rear axle
|
Steering Wheel
| Left hand drive, RHD is selective
|
Gear Box
| 5 speed gearbox, manual
|
Brake
| Air brake
|
Air-conditioner
| No, can be installed
|
Cold Room
| Box inner dimension(mm)
| 5120×2050×2100 (mm)
|
Box Side
| Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure.
|
Box Floor
| Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard.
|
Doors
| Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc.
The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability.
Door edgings, door locks and accessories use stainless steel materials.
|
Cooking unit
| Huatai brand F300 Preservation cooling unit
| Huatai brand F300 Preservation cooling unit, the temperature can be adjusted from zero degree to 8 degree below zero, etc. And the cooling unit can be adjusted at the driver cab.
|
Remark
| The refrigerated truck can choose to install meat hangers, vent-slots, etc. and side doors.
|
If you're interested in our refrigerated truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

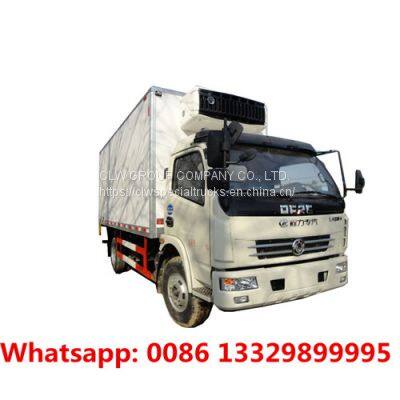

More pictures of Dongfeng RHD refrigerated truck for sale,
Dongfeng RHD refrigerated truck for frozen meat, adopts Dongfeng RHD chassis, dongfeng RHD 2025mm single row driver cab, 3800mm wheelbase, 5 speed transmission, 7.50R16 tyre, 2.4ton front bridge/4.2ton rear bridge, Cummins 140hp diesel engine, power steering, air-cut brake, electron extinction, Camel brand storage battery, etc. The real load of the dongfeng RHD refrigerated truck is 6ton-8ton.
Dongfeng RHD duolika refrigerated truck, the insulation body dimension (L*W*H)
is 5120×2050×2100, the interior and exterior can be chosen the popular glass steel
material, or stainless steel, aluminum alloy material, and the insulation van with
strengthen, etc. the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 8mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There are aluminum alloy ventilation slots on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
If installed the meat hangers, the whole refrigerated van should be fastened. And the meat hangers are with double sides to hold one pig.
The cooling unit adopts high quality Hanya DM-450C cooling unit. And the temperature can be adjusted in the driver cab, and the van temperature can reach 18 degree below zero.
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita.
>>
