Plastic Recycling Machine Pelletizing for Big Film and Bags

Product Description

Product Description

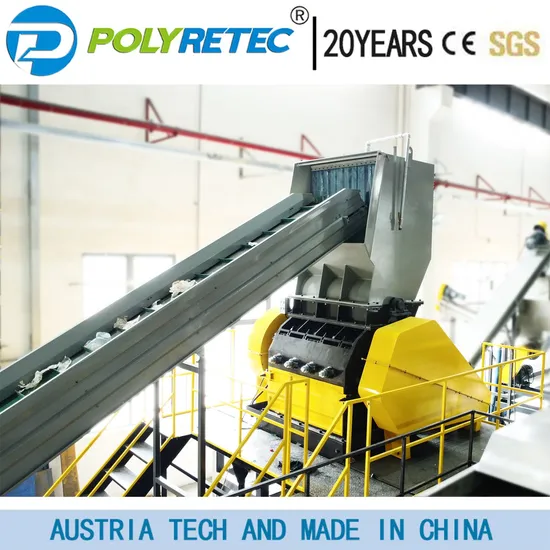

Waste PET beverage bottle, Coke bottle, mineral water bottle crushing washing recycling machine line is used for grinding, washing, separating bottle caps and labels, depriving impurities and glue, drying bottle flakes. Then, these waste PET bottles will become PET materials for reuse.
01 - Features


We have several different standards of PET bottle crushing washing machine line according to different production capacity and cleaning requirements. The PET bottle crushing washing recycling machine line has a capacity of 300-5000kg/h.

Waste PET beverage bottle, Coke bottle, mineral water bottle crushing washing recycling machine line is used for grinding, washing, separating bottle caps and labels, depriving impurities and glue, drying bottle flakes. Then, these waste PET bottles will become PET materials for reuse.





02 - Process flow

03 - Photos






Product Parameters

04 - Project parameters

Model	Capacity	Installation power	Space	steam	compressed air	Water
PET500	500kg/h	150kw	700m2	2000kcal	0.5m3	2m3
PET1000	1000kg/h	220kw	1500m2	4000kcal	0.5m3	2m3
PET2000	2000kg/h	260kw	2000m2	6000kcal	0.5m3	3m3

05 - Unit consumption

No	Name	Consumption/ton	No	Name	Consumption/ton
1.	electricity	70-90kw	3.	Clean agent (option)	4-8kg
2.	Steam	250-400kg	4.	Water	1-1.5T

06 - Product quality reference table

No	name	AA(ppm)	A(ppm)
01	PVC content	≤25	≤100
02	PE/PP/color/metal/others	≤75	≤100
03	Total impurities	≤100	≤200

After Sales Service


Certifications
