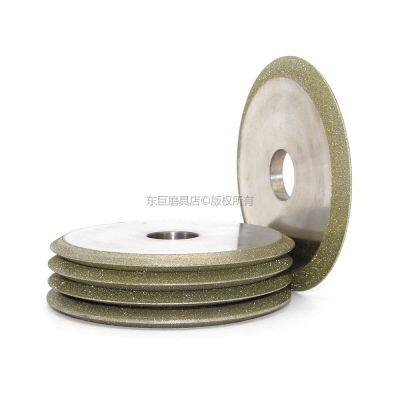

1EE1 diamond grinding wheel is a type of abrasive wheel with Sharp edge, which is suitable for grinding V groove, shaping, and cutting.
The material can be synthetic as well as CBN(Cubic Boron Nitride), shape and size can be customized. There is a wide range of grit for option.
Rough grit can be 30/40 and fine grit can be 400# or finer according to requirement.
It has a common electroplated bond diamond grinding wheels feature with high precision, good sharpness, and variable sizes.
Need sample order of 1A1, 1F1, 1EE1, 1V1, please go to our aliexpress store link or leave a message for more customized grinding wheels.
| Material | diamond or CBN(cubic boron nitride) |
| D(Diameter) | 175,150,125,100,75mm for option |
| T(Thickness) | 10mm |
| d(Hole) | 32,25,20,16,13mm for option |
| A(Angle) | Angle V= 30,45,60 degree for option |
| X(Rim thickness) | 3mm |
| Grit | default grit 150#,need other grit,leave message. |
| Diamond wheel Usage | Diamond Abrasive Tools are used for hard carbide, optical glass, gem, semi-conductor materials, non-ferrous materials, and non-metallic material grinding, cutting or electrolytic grinding., |
| CBN wheel usage | CBN Abrasive Tools are used for grinding ferrous metal, such as refractory alloy, vanadium steel, cobalt steel, molybdenum steel, high speed steel, bearing steel and titanium steel etc. |
| Packaging | 1piece/Carton |
Need customized size,contact us. samples available.
|
Option tips:
D stands for Ourter Diameter,d stands for Inner diameter/hole,V stands for Angle.
D175d32 means Outer diameter is 175mm,hole size is 32mm, Default Grit is 150#
D175d25 means Outer diameter is 175mm,hole size is 25mm,Default Grit is 150#
D175d20 means Outer diameter is 175mm,hole size is 20mm, Default Grit is 150#
D150d32 means Outer diameter is 150mm,hole size is 32mm,Default Grit is 150#
D150d25 means Outer diameter is 150mm,hole size is 25mm, Default Grit is 150#
D150d20 means Outer diameter is 150mm,hole size is 20mm ,Default Grit is 150#
D150d16 means Outer diameter is 150mm,hole size is 16mm ,Default Grit is 150#
D125d25 means Outer diameter is 125mm,hole size is 25mm ,Default Grit is 150#
D125d20 means Outer diameter is 125mm,hole size is 20mm ,Default Grit is 150#
D125d16 means Outer diameter is 125mm,hole size is 16mm ,Default Grit is 150#
D100d25 means Outer diameter is 100mm,hole size is 25mm ,Default Grit is 150#
D100d20 means Outer diameter is 100mm,hole size is 20mm ,Default Grit is 150#
D100d16 means Outer diameter is 100mm,hole size is 16mm ,Default Grit is 150#
D75d20 means Outer diameter is 75mm,hole size is 20mm ,Default Grit is 150#
D75d16 means Outer diameter is 75mm,hole size is 16mm ,Default Grit is 150#
D75d13 means Outer diameter is 75mm,hole size is 13mm ,Default Grit is 150#
Default Angle is 45 degree,T(Thickness) is 10mm,grain size is 150#,
Need other customized material,size,and grit,leave message.
Specialized abrasive tools can be finish within 7 days.
>>
